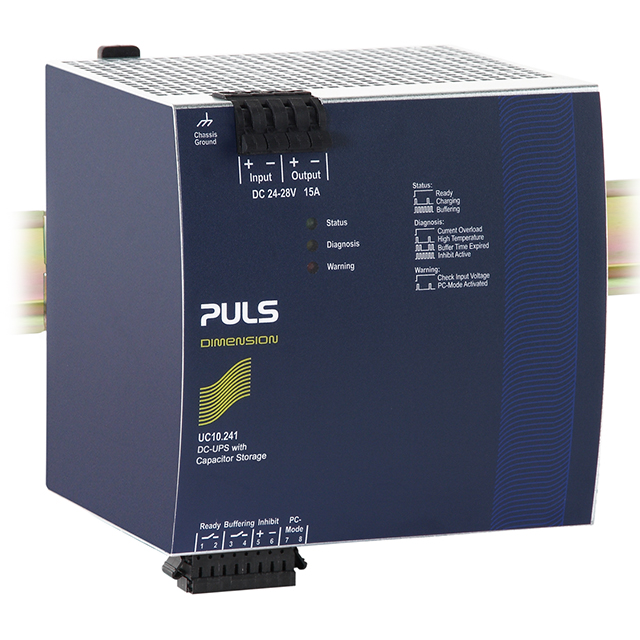

UC10.241

Active

PULS, LP

DIN RAIL BUFFERMOD 6KWS 24V 15A

Search across all available documentation for this part.

Active

PULS, LP

DIN RAIL BUFFERMOD 6KWS 24V 15A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UC10.241	UC10 Series

Applications	Industrial Control, General Purpose	Industrial Control, General Purpose
Backup Time - Max Load	9 seconds	9 seconds
Backup Time - Max Load	-	18 seconds
Form	Din Rail	Din Rail
Height [z]	124 mm	124 mm
Height [z]	4.882 in	4.882 in
Power - Rated	360 W	360 W
Size / Dimension [x]	4.606 "	4.606 "
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [y]	4.961 in	4.961 - 7.795 in
Size / Dimension [y]	126 mm	126 - 198 mm
Type	Standby (No Regulation)	Standby (No Regulation)
Voltage - Output	24 V	24 V
Weight	2.5 lbs	2.5 - 3.8 lbs
Weight	1.1 kg	1.1 - 1.7 kg

DIN RAIL BUFFERMOD 12KWS 24V 15A

Part	Form	Backup Time - Max Load [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output	Weight	Weight	Applications	Height [z]	Height [z]	Type	Power - Rated	Backup Time - Max Load
PULS, LP UC10.242	Din Rail	18 seconds	117 mm	4.606 "	7.795 in	198 mm	24 V	1.7 kg	3.8 lbs	General Purpose, Industrial Control	124 mm	4.882 in	Standby (No Regulation)	360 W
PULS, LP UC10.241	Din Rail		117 mm	4.606 "	4.961 in	126 mm	24 V	1.1 kg	2.5 lbs	General Purpose, Industrial Control	124 mm	4.882 in	Standby (No Regulation)	360 W	9 seconds

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 900.00

General part information

DIN RAIL BUFFERMOD 6KWS 24V 15A

Technical documentation and resources
