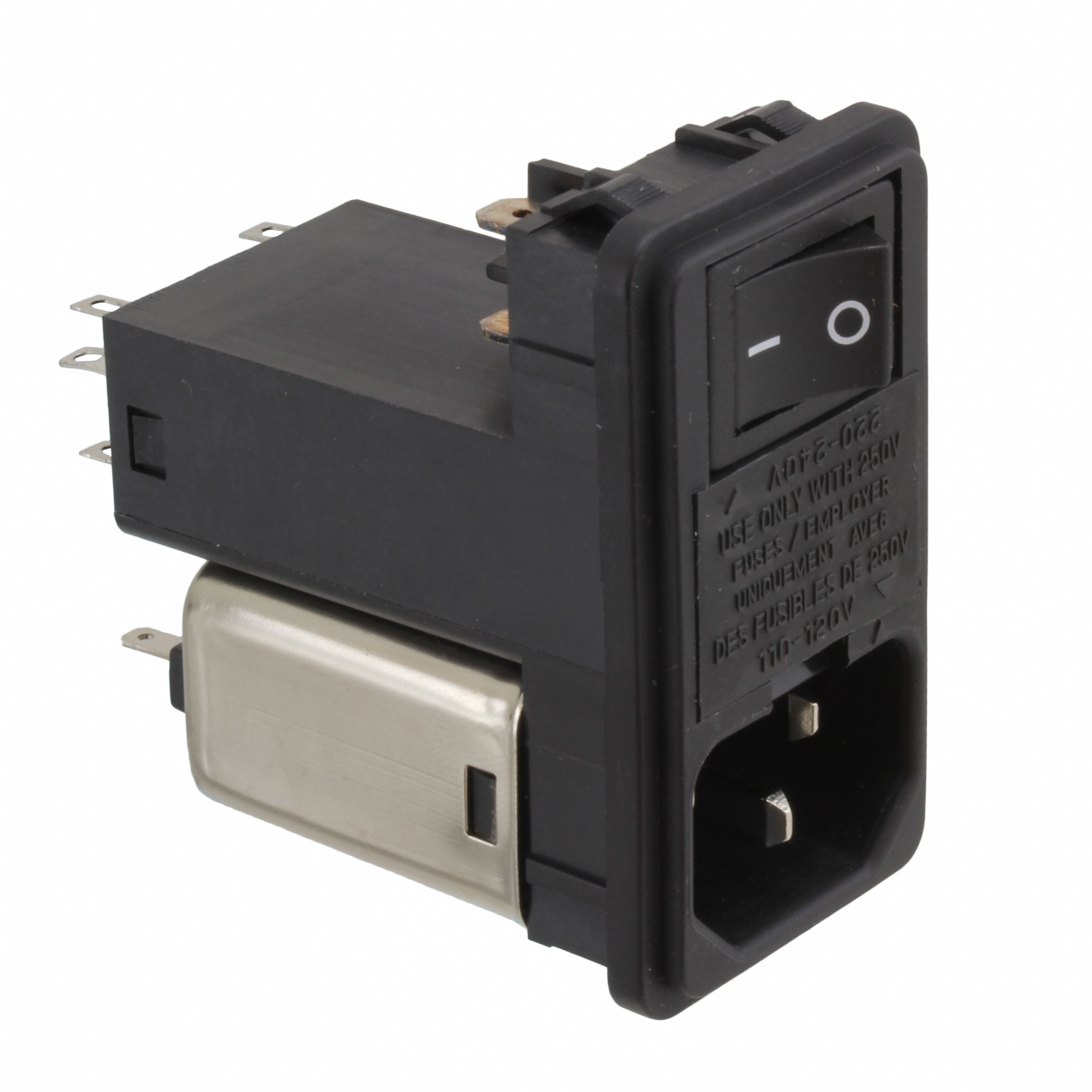

03NB3
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03NB3
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 03NB3 | 03NB Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A | 3 A |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Thickness [Max] | 0.126 in | 0.126 in |
| Panel Thickness [Max] | 3.2 mm | 3.2 mm |
| Panel Thickness [Min] | 0.79 mm | 0.79 mm |
| Panel Thickness [Min] | 0.031 " | 0.031 " |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | Solder Eyelet | Solder Eyelet |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
03NB Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Mounting Type | Filter Type | Panel Cutout Dimensions | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Accomodates a Fuse | Termination | Connector Type | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Connector Style | Fuse Holder, Drawer | Approval Agency | Switch Features | Current Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 03NB3M | Panel Mount, Snap-In | Filtered (EMI, RFI) - Commercial, Medical | Variable Size | 0.126 in | 0.79 mm | 3.2 mm | 0.031 " | Solder Eyelet | Receptacle, Male Blades - Module | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder, Twin Fused | CSA, UL, VDE | Switch On-Off | 3 A | |
Delta Electronics 03NB3 | Panel Mount, Snap-In | Filtered (EMI, RFI) - Commercial | Variable Size | 0.126 in | 0.79 mm | 3.2 mm | 0.031 " | Solder Eyelet | Receptacle, Male Blades - Module | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder, Twin Fused | CSA, UL, VDE | Switch On-Off | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 96 | $ 15.27 | |
Description
General part information
03NB Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
