1-103638-9
ActiveTE Connectivity AMP Connectors

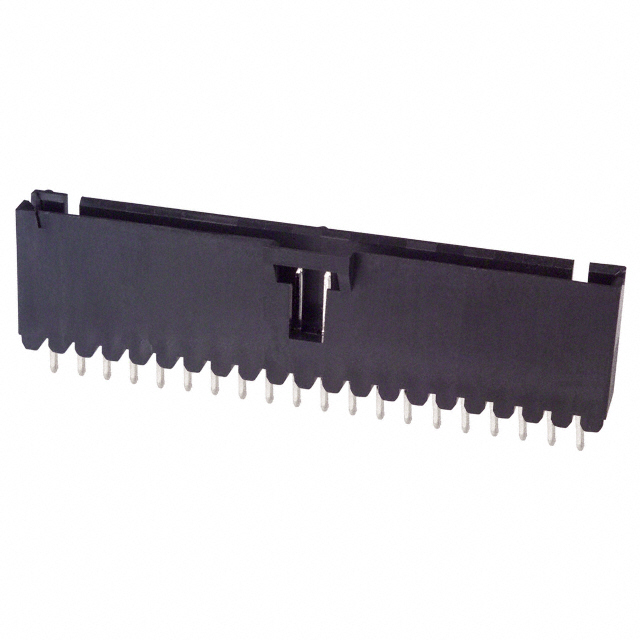

CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103638-9
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103638-9 | 103638 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 20 | 4 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 380 | $ 3.31 | |
103638 Series
CONN HEADER VERT 18POS 2.54MM
| Part | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Height | Insulation Height | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Post | Contact Finish - Mating | Number of Positions | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Contact Material | Shrouding | Contact Type | Number of Rows | Features | Connector Type | Style | Insulation Color | Applications | Insulation Material | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-103638-7 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 18 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
TE Connectivity AMP Connectors 103638-6 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 7 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
TE Connectivity AMP Connectors 103638-5 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 6 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
TE Connectivity AMP Connectors 1-103638-9 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 20 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
TE Connectivity AMP Connectors 103638-3 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 4 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
TE Connectivity AMP Connectors 103638-9 | 0.1 in | 2.54 mm | Latch Holder | 13.6 mm | 0.535 in | Square | 15 µin | 0.38 µm | Through Hole | 0.23 in | 5.84 mm | Tin-Lead | Gold | 10 | Solder | 2.54 µm | 100 µin | All | Brass | Shrouded - 4 Wall | Male Pin | 1 | Keying Slot | Header | Board to Board, Cable | Black | Automotive, General Purpose, Medical, Telecommunications | Thermoplastic | 0.13 in | 3.3 mm |
Description
General part information
103638 Series
Connector Header Through Hole 20 position 0.100" (2.54mm)
