Description
General part information
104990859

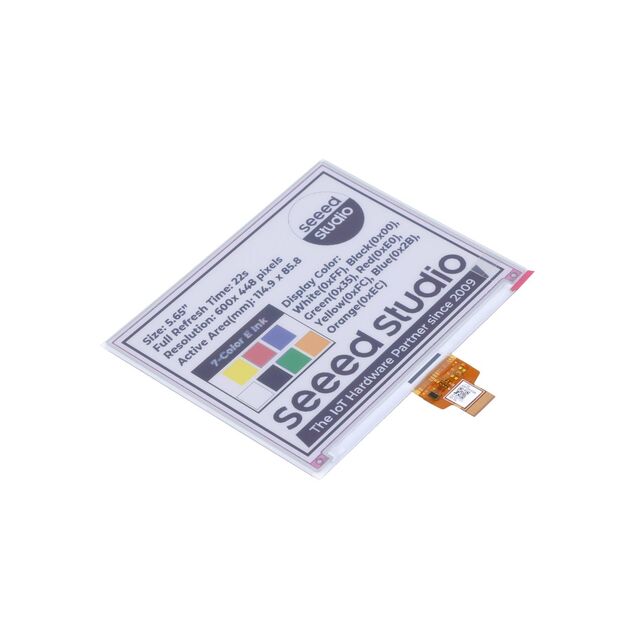

Graphic LCD Display Module Reflective Black, Blue, Green, Orange, Red, White, Yellow TFT - Color SPI 5.65" (143.51mm) 600 x 448
Technical Specifications
Parameters and characteristics for this part
| Specification | 104990859 |
|---|---|
| Backlight | Without Backlight |
| Controller Type | STM32 |
| Diagonal Screen Size | 5.65 in |
| Display Mode | Reflective |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.19 mm |
| Dot Pitch Width | 0.19 mm |
| Dot Pixels (Horizontal) | 600 pixels |
| Dot Pixels (Vertical) | 448 pixels |
| Graphics Color | White, Yellow, Orange, Black, Blue, Red, Green |
| Interface | SPI |
| Viewing Area Height | 85.8 mm |
| Viewing Area Width | 114.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
