DS3231MEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS3231M
Deep-Dive with AI
Search across all available documentation for this part.
DS3231MEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS3231M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS3231MEVKIT# | DS3231 Series |
|---|---|---|
| Contents | - | Board(s) |
| Current - Timekeeping (Max) | - | 170 - 200 µA |
| Current - Timekeeping (Max) | - | 110 - 130 µA |
| Features | - | Alarm, TCXO/Crystal, Square Wave Output, Leap Year |
| Grade | - | Automotive |
| Interface | - | I2C, 2-Wire Serial |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 0.154 - 0.295 in |
| Package / Case | - | 16-SOIC, 8-SOIC |
| Package / Case | - | 3.9 - 7.5 mm |
| Qualification | - | AEC-Q100 |
| Secondary Attributes | - | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-SOIC, 8-SOIC |
| Time Format | - | HH:MM:SS (12/24 hr) |
| Type | Timing | Clock/Calendar, Timing |
| Utilized IC / Part | DS3231M | DS3231M |
| Voltage - Supply | - | 2.3 V |
| Voltage - Supply | - | 5.5 V |
| Voltage - Supply, Battery | - | 2.3 V |
| Voltage - Supply, Battery | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 125.76 | |
DS3231 Series
IC RTC CLK/CALENDAR I2C 16SOIC
| Part | Time Format | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type | Features | Interface | Package / Case [x] | Package / Case | Package / Case [y] | Voltage - Supply, Battery [Min] | Voltage - Supply, Battery [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Timekeeping (Max) [Max] | Current - Timekeeping (Max) [Min] | Supplied Contents | Utilized IC / Part | Qualification | Grade | Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS3231SN# | HH:MM:SS (12/24 hr) | 16-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output, TCXO/Crystal | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 170 µA | 110 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231MEVKIT# | Timing | Board(s) | DS3231M | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated DS3231M+ | HH:MM:SS (12/24 hr) | 16-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 200 µA | 130 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231MZ/V+T | HH:MM:SS (12/24 hr) | 8-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output | 2-Wire Serial, I2C | 0.154 in | 8-SOIC | 3.9 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 200 µA | 130 µA | AEC-Q100 | Automotive | ||||
Analog Devices Inc./Maxim Integrated DS3231MZ+TRL | HH:MM:SS (12/24 hr) | 8-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output | 2-Wire Serial, I2C | 0.154 in | 8-SOIC | 3.9 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 200 µA | 130 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231S#T&R | HH:MM:SS (12/24 hr) | 16-SOIC | 70 °C | 0 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output, TCXO/Crystal | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 170 µA | 110 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231SN#T&R | HH:MM:SS (12/24 hr) | 16-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output, TCXO/Crystal | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 170 µA | 110 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231M+TRL | HH:MM:SS (12/24 hr) | 16-SOIC | 85 °C | -40 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 200 µA | 130 µA | ||||||
Analog Devices Inc./Maxim Integrated DS3231MPMB1# | Timing | Board(s) | DS3231M | Board(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated DS3231S# | HH:MM:SS (12/24 hr) | 16-SOIC | 70 °C | 0 °C | Surface Mount | Clock/Calendar | Alarm, Leap Year, Square Wave Output, TCXO/Crystal | 2-Wire Serial, I2C | 0.295 in | 16-SOIC | 7.5 mm | 2.3 V | 5.5 V | 2.3 V | 5.5 V | 170 µA | 110 µA |
Description
General part information
DS3231 Series

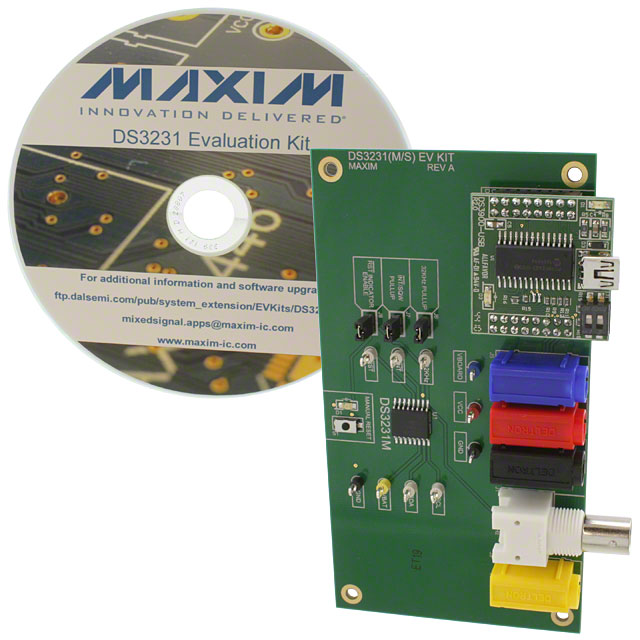

DS3231M Real Time Clock (RTC) Timing Evaluation Board
Documents
Technical documentation and resources
