2900379

Active

Phoenix Contact

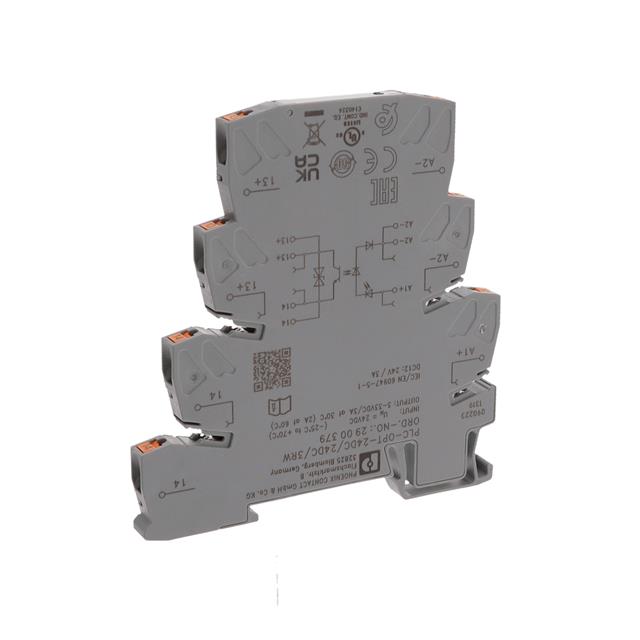

SSR RELAY SPST-NO 3A 3-33V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 3A 3-33V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources

Specification	2900379	290037 Series

Approval Agency	DNV, UKCA, CE	DNV, UKCA, CE
Load Current	3 A	0.75 - 3 A
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	DC	AC, DC
Package / Case	Module	Module
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Voltage - Input	24 V	5 - 230 VDC
Voltage - Load [Max]	33 V	33 - 253 V
Voltage - Load [Min]	3 V	3 - 24 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Approval Agency	Load Current	Output Type	Voltage - Input	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]
Phoenix Contact 2900370	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	0.75 A	AC	48 VDC	Spring Terminal	24 V	253 V
Phoenix Contact 2900374	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	0.75 A	AC	230 VAC	Spring Terminal	24 V	253 V
Phoenix Contact 2900375	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	3 A	DC	5 VDC	Spring Terminal	3 V	33 V
Phoenix Contact 2900379	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	3 A	DC	24 V	Screw Terminal	3 V	33 V
Phoenix Contact 2900376	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	3 A	DC	24 V	Spring Terminal	3 V	33 V
Phoenix Contact 2900372	-25 °C	60 °C	Module	DIN Rail	CE, DNV, UKCA	0.75 A	AC	120 VAC	Spring Terminal	24 V	253 V
