EN2C3F20DC
ActiveSwitchcraft Inc.

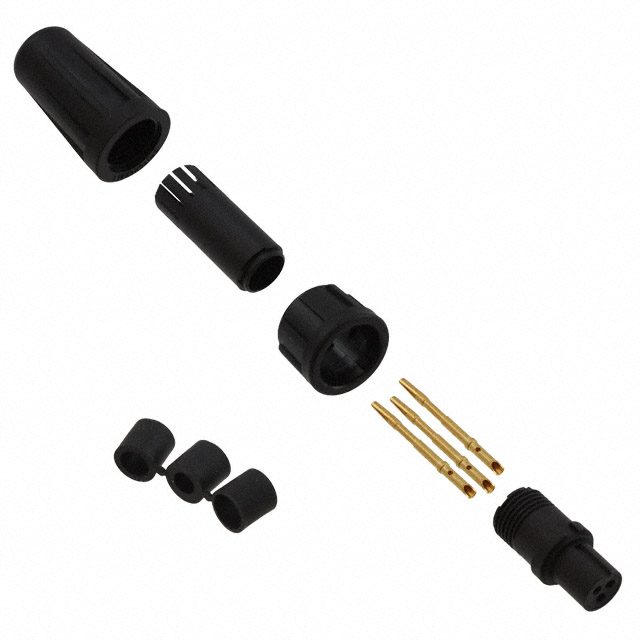

CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2C3F20DC
ActiveSwitchcraft Inc.
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2C3F20DC | EN2C3F Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.22 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 5.59 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 0.14 in |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 2.54 - 3.56 mm |
| Cable Opening | - | 0.1 - 0.14 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell, Winged |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup |
| Voltage Rating | 125 VAC | 125 VAC |
EN2C3F Series
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Material Flammability Rating | Termination | Contact Material | Insert Material | Voltage Rating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shielding | Applications | Contact Finish - Mating | Current Rating (Amps) | Color | Mounting Type | Primary Material | Orientation | Backshell Material, Plating | Ingress Protection | Connector Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2C3F20DCW | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut, Winged | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | ||||||||||
Switchcraft Inc. EN2C3F20G3W | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut, Winged | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | ||||||
Switchcraft Inc. EN2C3F20G2W | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut, Winged | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C3F20G3 | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | ||||||
Switchcraft Inc. EN2C3F20DC | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | ||||||||||
Switchcraft Inc. EN2C3F20G2 | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C3F20G1W | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut, Winged | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C3F20G1 | UL94 V-0 | Crimp, Solder Cup | Copper Alloy | Elastomer | 125 VAC | Backshell, Coupling Nut | 85 °C | -40 °C | Bayonet Lock | Unshielded | Communication Systems, Industrial, Marine, Medical | Gold | 2 A | Black | Free Hanging (In-Line) | Plastic | Keyed | Thermoplastic | IP66, IP67, IP68 | Female Sockets, Plug | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.07 | |
| 10 | $ 8.92 | |||
| 25 | $ 8.58 | |||
| 50 | $ 8.24 | |||
| 100 | $ 7.78 | |||
| 300 | $ 7.09 | |||
| 500 | $ 7.06 | |||
Description
General part information
EN2C3F Series
3 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
