COH-1706-200-05-1NT

Active

Taica North America Corporation

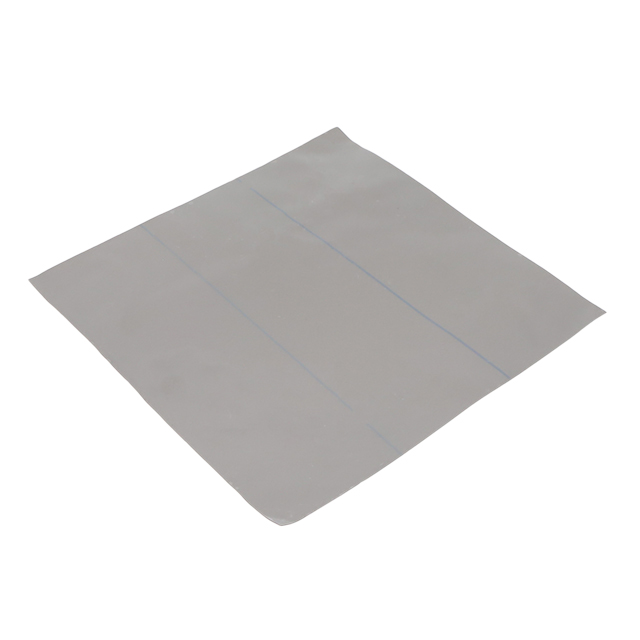

THERM PAD 200MMX200MM GRAY

Search across all available documentation for this part.

Active

Taica North America Corporation

THERM PAD 200MMX200MM GRAY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 200.00mm x 200.00mm Square Tacky - One Side

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	COH-1706-200-05-1NT	COH-1706 Series

Adhesive	Tacky - One Side	Tacky - Both Sides, Tacky - One Side
Color	Gray	Gray
Material	Silicone Gel	Silicone Gel
Outline [x]	200 mm	200 - 400 mm
Outline [y]	200 mm	200 - 400 mm
Shape	Square	Square
Thermal Conductivity	3.8 W/m-K	3.8 W/m-K
Thickness	0.508 mm	0.508 - 3 mm
Thickness	0.02 in	0.02 - 0.118 in
Type	Gel Pad, Sheet	Gel Pad, Sheet

THERM PAD 200MMX200MM GRAY

Part	Material	Color	Thickness	Thickness	Type	Thermal Conductivity	Adhesive	Outline [x]	Outline [y]	Shape
Taica North America Corporation COH-1706-200-30	Silicone Gel	Gray	3 mm	0.118 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	200 mm	200 mm	Square
Taica North America Corporation COH-1706-400-20	Silicone Gel	Gray	2 mm	0.079 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	400 mm	400 mm	Square
Taica North America Corporation COH-1706-400-30	Silicone Gel	Gray	3 mm	0.118 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	400 mm	400 mm	Square
Taica North America Corporation COH-1706-200-20	Silicone Gel	Gray	2 mm	0.079 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	200 mm	200 mm	Square
Taica North America Corporation COH-1706-200-30-1NT	Silicone Gel	Gray	3 mm	0.118 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - One Side	200 mm	200 mm	Square
Taica North America Corporation COH-1706-200-05	Silicone Gel	Gray	0.508 mm	0.02 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	200 mm	200 mm	Square
Taica North America Corporation COH-1706-200-10-1NT	Silicone Gel	Gray	0.991 mm	0.039 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - One Side	200 mm	200 mm	Square
Taica North America Corporation COH-1706-200-10	Silicone Gel	Gray	0.991 mm	0.039 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	200 mm	200 mm	Square
Taica North America Corporation COH-1706-200-05-1NT	Silicone Gel	Gray	0.508 mm	0.02 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - One Side	200 mm	200 mm	Square
Taica North America Corporation COH-1706-400-10	Silicone Gel	Gray	0.991 mm	0.039 in	Gel Pad, Sheet	3.8 W/m-K	Tacky - Both Sides	400 mm	400 mm	Square
