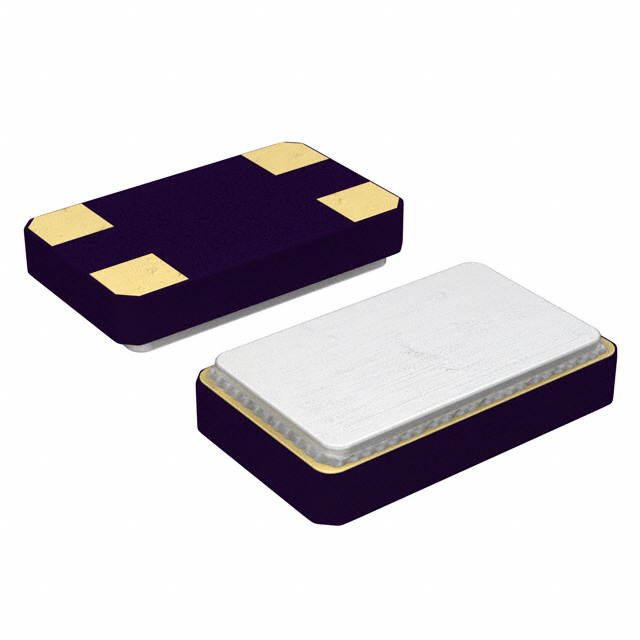

ABMM2-40.000MHZ-E2F-T
ActiveAbracon LLC
CRYSTAL 40.0000MHZ 18PF SMD
ABMM2-40.000MHZ-E2F-T
ActiveAbracon LLC
CRYSTAL 40.0000MHZ 18PF SMD
Description
General part information
ABMM2-40.000MHZ-E2F-T
40 MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ABMM2-40.000MHZ-E2F-T |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 40 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.047 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.24 in, 0.236 in |
| Size / Dimension Width | 0.142 in |
| Type | MHz Crystal |
