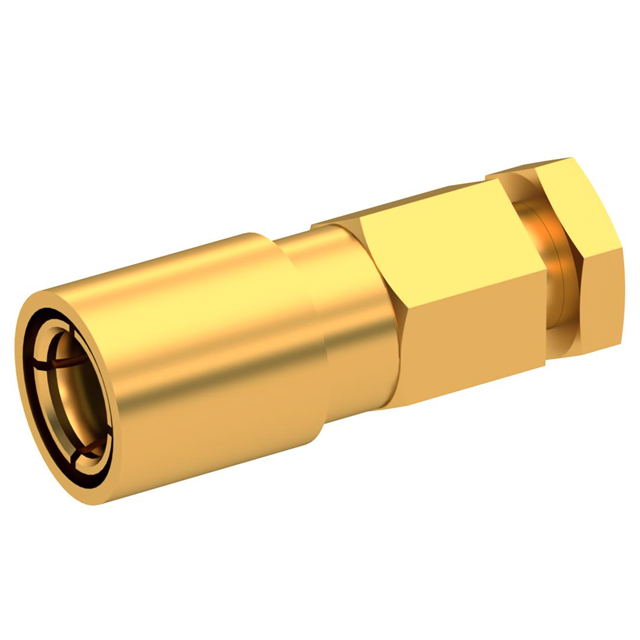

2002-1551-003

Active

Radiall USA, Inc.

SMB F STR NA CL 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F STR NA CL 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	2002-1551-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Cable Group	Impedance	Housing Color	Center Contact Material	Fastening Type	Frequency - Max [Max]	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Connector Style	Mounting Type	Center Contact Plating	Number of Ports	Body Material	Body Finish	Dielectric Material	Voltage Rating	Mating Cycles	Connector Type
Radiall USA, Inc. 2002-1551-003	316 RG-174	50 Ohms	Gold	Beryllium Copper	Snap-On	4 GHz	Solder	-65 ░C	165 °C	Clamp	SMB	Free Hanging (In-Line)	Gold	1	Brass	Gold	Polytetrafluoroethylene (PTFE)	335 V	500	Female Socket Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
