1241.1106.7091

Active

SCHURTER Inc.

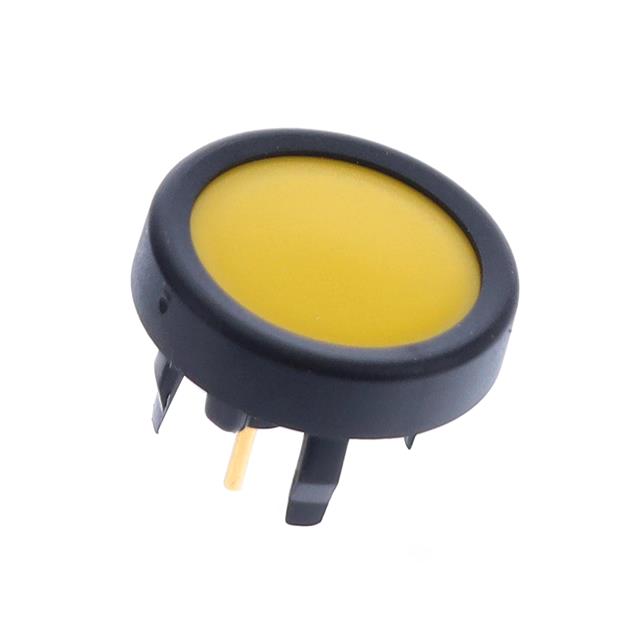

SWITCH PUSH SPST-NO 80MA 24V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 80MA 24V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1106.7091

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Yellow
Current Rating (Amps)	80 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	13 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	24 V

SWITCH PUSH SPST-NO 80MA 24V

Part	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Actuator Type	Type	Electrical Life	Features	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Color - Actuator/Cap	Circuit	Ingress Protection	Mechanical Life	Actuator Marking
SCHURTER Inc. 1241.1106.7091	13 mm	Solder Lug	Panel Mount, Snap-In	Button, Flush, Round	Standard	1000000 Cycles	Tactile Feedback	80 mA	24 V	-25 °C	60 °C	Off-Mom	Yellow	SPST-NO	IP65 - Dust Tight, Water Resistant	1000000 Cycles	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
