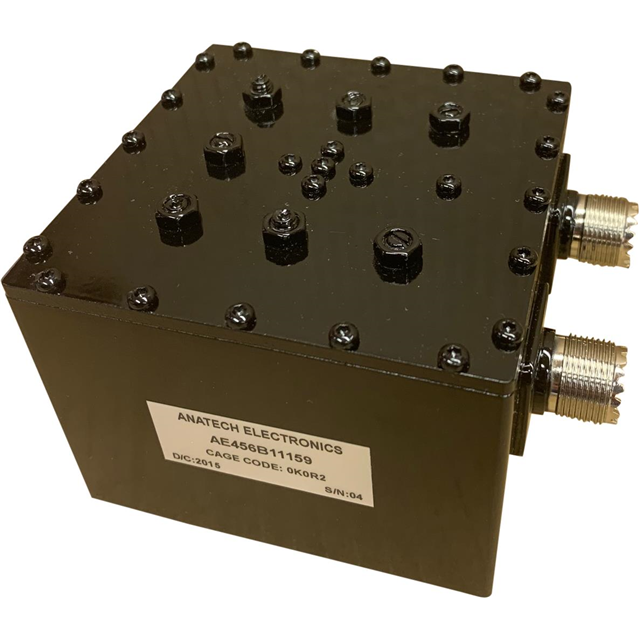

AE456B11159
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 456.5MHZ MOD
AE456B11159
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 456.5MHZ MOD
Description
General part information
AE456B11159
456.5MHz Center Frequency Band Pass RF Filter (Radio Frequency) 11MHz Bandwidth 1dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | AE456B11159 |
|---|---|
| Bandwidth | 11 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 456.5 MHz |
| Height (Max) | 2.913 in |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension Length | 3.589 in |
| Size / Dimension Width | 3.589 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
