H10082S
ActiveIntegra Enclosures
ENCLOSURE PC 10.54"L X 8.54"W
H10082S
ActiveIntegra Enclosures
ENCLOSURE PC 10.54"L X 8.54"W
Description
General part information
H10082S

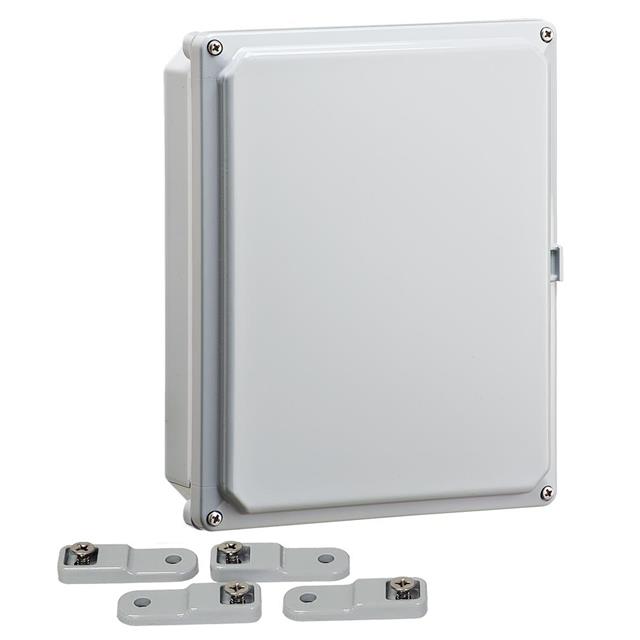

Enclosure Plastic, Polycarbonate (PC) Gray Cover Included 10.540" L x 8.540" W (267.72mm x 216.92mm) X 3.300" (83.82mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | H10082S |
|---|---|
| Area (L x W) | 80 in², 90 in² |
| Color | Gray, Opaque Cover/Door |
| Container Type | Enclosure |
| Design | Lift-Off Screw Cover, Cover Included |
| Features | Mounting Brackets |
| Height | 2 in, 83.82 mm |
| Material | Polycarbonate (PC), Plastic |
| Material Flammability Rating | UL94 V-0, UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | 1, 3S, NEMA, 2, 3R, 3, 4X, 4, 12, 13, IP66, IP68, NEMA 4X, NEMA 6P |
| Size / Dimension Length | 10 in, 10.54 in |
| Size / Dimension Width | 8 in, 8.54 in |
| Thickness | 0.15 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
