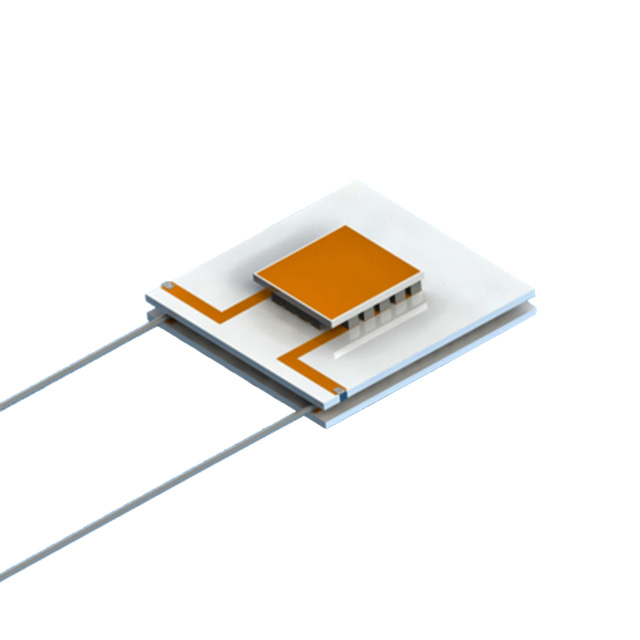

NL2064T-11AB
ActiveMarlow Industries, Inc.
MULTISTAGE TEM 29.64X29.64X6.1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NL2064T-11AB
ActiveMarlow Industries, Inc.
MULTISTAGE TEM 29.64X29.64X6.1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NL2064T-11AB |
|---|---|
| Current - Max [Max] | 5.4 A |
| Delta Tmax @ Th | 93 °C |
| Features | Exterior Metallization (Both Sides), Lead Wires |
| Height [z] | 6.1 mm |
| Number of Stages | 2 |
| Qmax @ Th | 10.4 W |
| Resistance | 1.43 Ohms |
| Size / Dimension [x] | 29.64 mm |
| Size / Dimension [y] | 29.64 mm |
| Voltage - Max [Max] | 8.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 285.88 | |
| 5 | $ 268.76 | |||
| 10 | $ 261.91 | |||
| 25 | $ 253.35 | |||
Description
General part information
NL2064T-11AB
Peltier Module 10.4W @ 27°C 5.4 A 85°C
