2-967325-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSNG FMALE 2POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
2-967325-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSNG FMALE 2POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-967325-3 | 967325 Series |
|---|---|---|
| Connector Type | Plug Housing | Plug Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 2.5 mm | 2.5 mm |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Black, Gray | Black, Green, Gray |
| Ingress Protection | IP69K, IP67 | IP69K, IP67 |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 - 4 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | 2 | 2 |
| Orientation | - | 3 |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded | Unshielded |
| Type | For Female Sockets | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.13 | |
| 10 | $ 3.62 | |||
| 25 | $ 3.52 | |||
| 50 | $ 3.45 | |||
| 100 | $ 3.34 | |||
967325 Series

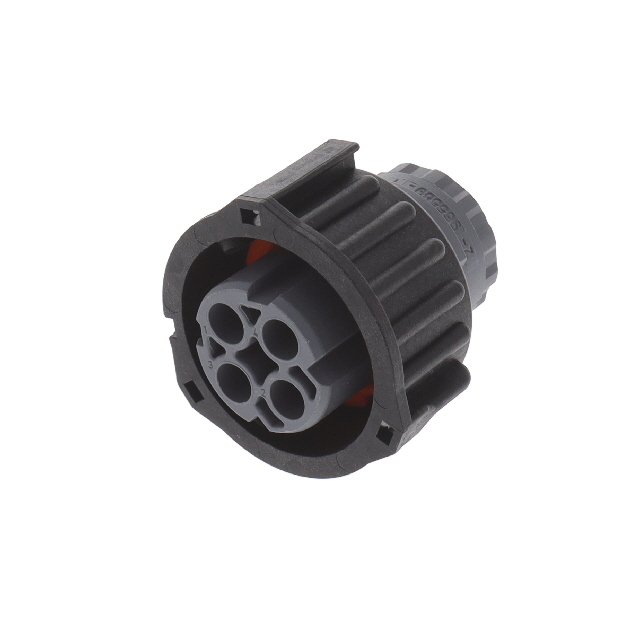

CONN PLUG HSG FMALE 4POS INLINE
| Part | Connector Type | Features | Number of Positions | Shielding | Ingress Protection | Contact Size | Material Flammability Rating | Contact Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Housing Color | Contact Shape | Type | Mounting Type | Note | Shell Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-967325-1 | Plug Housing | Coupling Nut | 4 | Unshielded | IP67, IP69K | 2.5 mm | UL94 HB | Crimp | 3 | -40 °C | 120 °C | Bayonet Lock | Black, Green | Circular | For Female Sockets | Free Hanging (In-Line) | Contacts Not Included | Polybutylene Terephthalate (PBT), Glass Filled | |
TE Connectivity AMP Connectors 2-967325-3 | Plug Housing | Coupling Nut | 2 | Unshielded | IP67, IP69K | 2.5 mm | UL94 HB | Crimp | -40 °C | 120 °C | Bayonet Lock | Black, Gray | Circular | For Female Sockets | Free Hanging (In-Line) | Contacts Not Included | Polybutylene Terephthalate (PBT), Glass Filled | 2 |
Description
General part information
967325 Series
2 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
