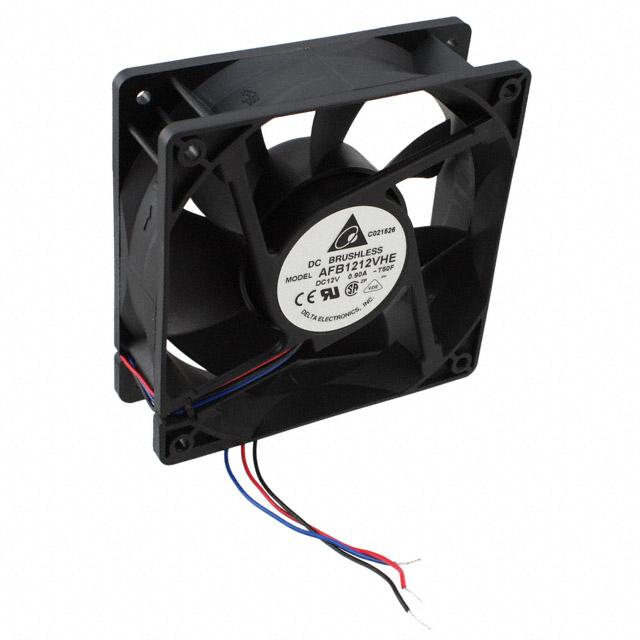

AFB1212VHE-T50F
ActiveDelta Electronics
FAN AXIAL 120X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB1212VHE-T50F
ActiveDelta Electronics
FAN AXIAL 120X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1212VHE-T50F |
|---|---|
| Air Flow | 3.64 m³/min |
| Air Flow | 130 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 600 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 48 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 7.2 W |
| RPM | 3200 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 0.42 in H2O |
| Static Pressure | 104.6 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 4 VDC |
| Weight | 256.28 g |
| Weight | 0.565 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.08 | |
| 10 | $ 25.19 | |||
| 36 | $ 22.67 | |||
| 72 | $ 20.78 | |||
| 108 | $ 19.52 | |||
| 252 | $ 17.00 | |||
| 504 | $ 16.37 | |||
Description
General part information
AFB1212VHE-T50F
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 130.0 CFM (3.64m³/min) 3 Wire Leads
