Description
General part information
20697-028E-01

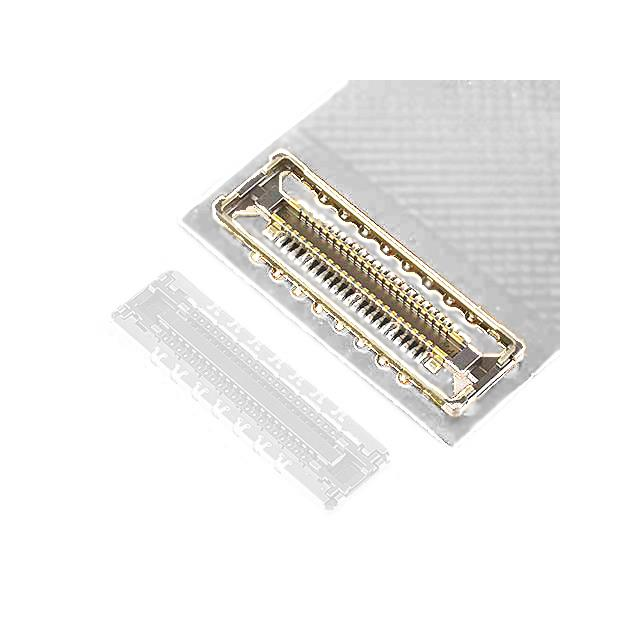

32 (28 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 20697-028E-01 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 µin |
| Features | Shielded |
| Height Above Board | 0.026 in |
| Mated Stacking Height | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions (Normal) | 28 |
| Number of Positions (Power) | 4 |
| Number of Positions (Total) | 32 |
| Number of Rows | 2 |
| Pitch | 0.014 in |
