CG-P-M20

Active

Adam Tech

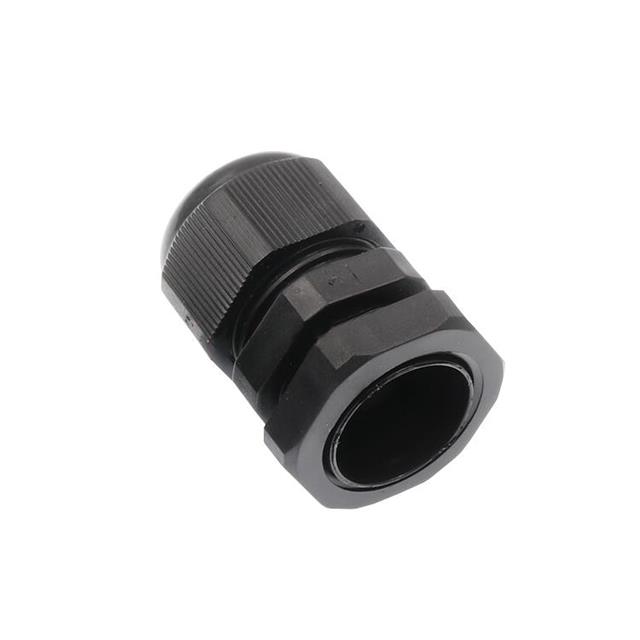

CONN ACCESSORIES, CABLE GLAND M20 WATER PROOF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CG-P-M20

Active

Adam Tech

CONN ACCESSORIES, CABLE GLAND M20 WATER PROOF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28
		10	$ 0.98
		25	$ 0.88
		50	$ 0.81
		100	$ 0.75
		250	$ 0.68
		500	$ 0.63
		1000	$ 0.59
		2500	$ 0.53

Description

General part information

- Series

Cable Gland Polyamide (PA66), Nylon 6/6 M20

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG-P-M20	- Series

Includes	Locknut, Seal	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Outside Cable Diameter (Max)	-	0.177 - 1.496 "
Outside Cable Diameter (Max)	-	4.5 - 38 mm
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max]	0.433 in	0.433 - 2.598 in
Outside Cable Diameter (Max) [Max]	11 mm	11 - 66 mm
Outside Cable Diameter (Min)	-	0.157 - 0.906 in
Outside Cable Diameter (Min)	-	4 - 23 mm
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	2.5 - 56 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.098 - 2.205 in
Panel Hole Size	0.787 in	0.327 - 2.126 in
Panel Hole Size	20 mm	0.504 - 54 in
Panel Hole Size	-	20.5 - 32.3 mm
Panel Hole Size	-	0.807 - 1.469 in
Panel Hole Size	-	12.8 mm
Panel Hole Size	-	2.965 in
Panel Hole Size	-	75.3 mm
Panel Hole Size	-	0.602 - 2.492 in
Panel Hole Size	-	15.3 - 63.3 mm
Thread Length	10 mm	7.5 - 25 mm
Thread Length	0.394 in	0.295 - 0.984 in
Thread Size	M20	PG13.5, PG7, M8, M50, M32, M16, M75, PG36, M25, M63, M18, PG11, M12, PG42, M20, M22, PG48, M10, M28, PG29, PG9, PG21
Type	Cable Gland	Cable Gland

- Series

CONN ACCESSORIES, CABLE GLAND PG13.5 WATER PROOF

Part	Thread Size	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Material	Thread Length	Thread Length	Panel Hole Size [x]	Panel Hole Size [x]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size	Panel Hole Size [custom]	Panel Hole Size [custom]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Min)
Adam Tech CG-P-13.5	PG13.5	Locknut, Seal	0.433 in	11 mm	IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	10 mm	0.394 in	20.5 mm	0.807 in	Cable Gland	6 mm	0.236 in
Adam Tech CG-P-7	PG7	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	9 mm	0.354 in			Cable Gland			0.504 in	12.8 mm	0.157 in	4 mm	0.256 "	6.5 mm
Adam Tech CG-P-M8-1.25	M8	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	7.5 mm	0.295 in			Cable Gland	2.5 mm	0.098 in	8.3 mm				0.177 "	4.5 mm	0.327 in
Adam Tech CG-P-M50-1.5	M50	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	18.01 mm	0.709 in			Cable Gland	30 mm	1.181 in	50.3 mm				1.496 in	38 mm	1.98 in
Adam Tech CG-P-M32-1.5	M32	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	12 mm	0.472 in	32.3 mm	1.272 in	Cable Gland					0.63 in	16 mm	0.827 in	21 mm
Adam Tech CG-P-M16	M16	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	9 mm	0.354 in			Cable Gland	4.5 mm	0.177 in	16.3 mm				0.335 in	8.5 mm	0.642 in
Adam Tech CG-P-M75-2.0	M75	Locknut, Seal	2.598 in	66 mm	IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	25 mm	0.984 in			Cable Gland	56 mm	2.205 in								2.965 in	75.3 mm
Adam Tech CG-P-36	PG36	Locknut, Seal	1.26 in	32 mm	IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	15 mm	0.591 in			Cable Gland					0.906 in	23 mm						1.85 in	47 mm
Adam Tech CG-P-M25	M25	Locknut, Seal			IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	12 mm	0.472 in			Cable Gland		0.512 in					0.709 in	18.01 mm						13 mm
Adam Tech CG-P-M63-1.5	M63	Locknut, Seal	1.732 in	44 mm	IP68 - Dust Tight, Waterproof	Polyamide (PA66), Nylon 6/6	18.01 mm	0.709 in			Cable Gland	37 mm	1.457 in										2.492 in	63.3 mm
