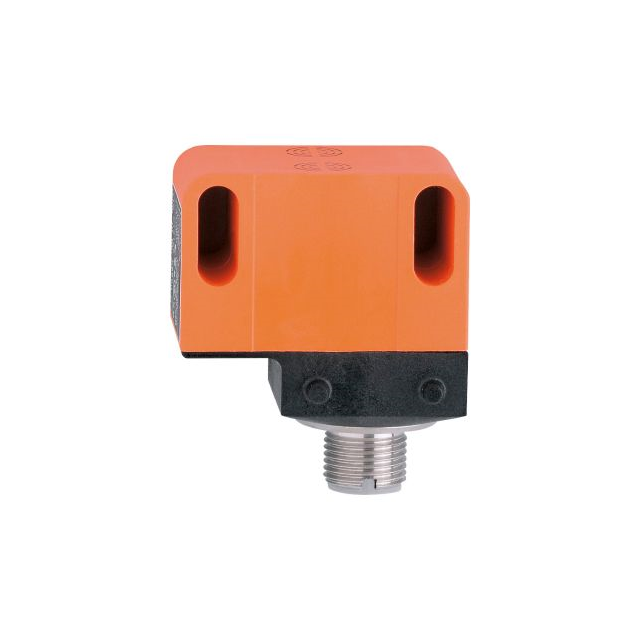

IN5327
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 4MM MODULE
IN5327
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 4MM MODULE
Description
General part information
IN5327
SENSOR PROX INDUCTIVE 4MM MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | IN5327 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 4-Wire, PNP-NO |
| Package / Case | Module |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
