Technical Specifications
Parameters and characteristics for this part
| Specification | 9537 060500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.209 in |
| Jacket (Insulation) Diameter [diameter] | 5.31 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 7 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
9537 Series
| Part | Features | Cable Type | Shield Coverage | Ratings | Jacket (Insulation) Material | Voltage | Usage | Conductor Insulation | Number of Conductors | Length | Length | Wire Gauge | Conductor Material | Shield Type | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | Drain Wire | Multi-Conductor | 100 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 300 V | Computer | Poly-Vinyl Chloride (PVC) | 7 | 1000 ft | 304.8 m | 24 AWG | Copper Tinned | Foil | Aluminum | 0.209 in | 5.31 mm | 32 AWG | 7 | Chrome | -30 ░C | 80 C | ||
Belden Inc. | Drain Wire | Multi-Conductor | 100 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 300 V | Computer | Poly-Vinyl Chloride (PVC) | 7 | 24 AWG | Copper Tinned | Foil | Aluminum | 0.209 in | 5.31 mm | 32 AWG | 7 | Chrome | -30 ░C | 80 C | 500 ' | 152.4 m | ||
Belden Inc. | Drain Wire | Multi-Conductor | 100 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 300 V | Computer | Poly-Vinyl Chloride (PVC) | 7 | 24 AWG | Copper Tinned | Foil | Aluminum | 0.209 in | 5.31 mm | 32 AWG | 7 | Chrome | -30 ░C | 80 C | 500 ' | 152.4 m | ||
Belden Inc. | Drain Wire | Multi-Conductor | 100 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 300 V | Computer | Poly-Vinyl Chloride (PVC) | 7 | 1000 ft | 304.8 m | 24 AWG | Copper Tinned | Foil | Aluminum | 0.209 in | 5.31 mm | 32 AWG | 7 | Chrome | -30 ░C | 80 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 2.60 | |
Description
General part information
9537 Series

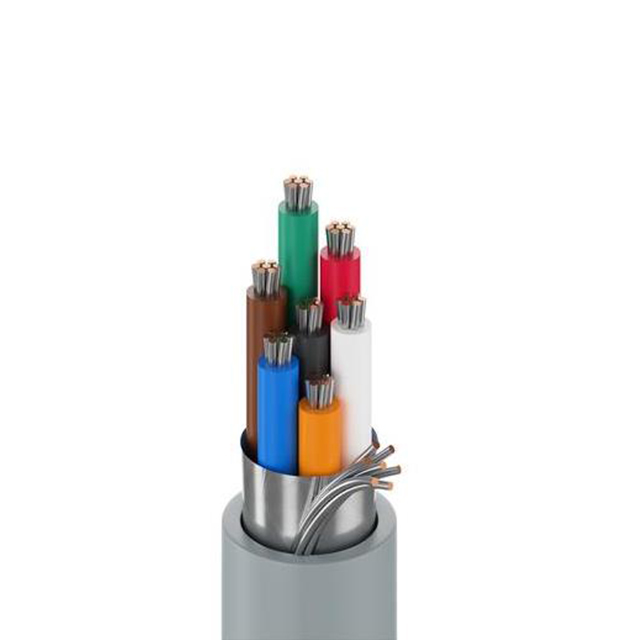

7 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
