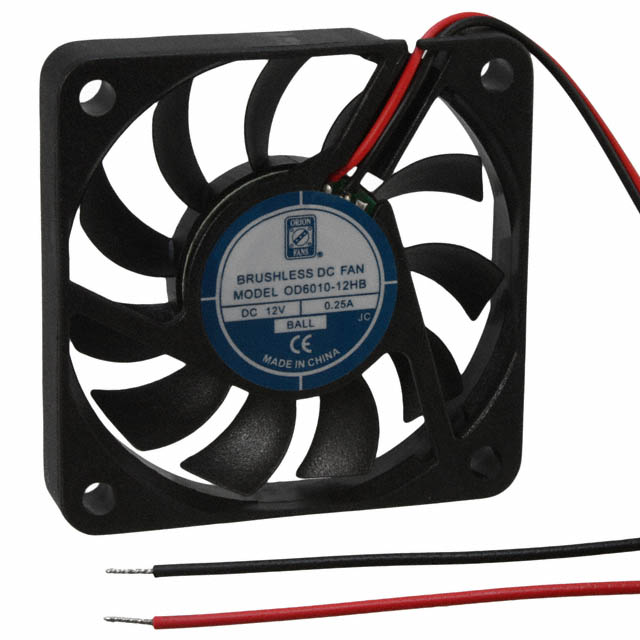

OD6010-12HB
ActiveOrion Fans
FAN AXIAL 60X10.5MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD6010-12HB
ActiveOrion Fans
FAN AXIAL 60X10.5MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD6010-12HB |
|---|---|
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.25 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 36 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 4600 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [x] | 10.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.59 | |
| 10 | $ 12.01 | |||
| 25 | $ 11.30 | |||
| 50 | $ 10.87 | |||
| 100 | $ 10.01 | |||
| 390 | $ 9.37 | |||
| 780 | $ 9.22 | |||
Description
General part information
OD6010-12HB
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 21.0 CFM (0.588m³/min) 2 Wire Leads
