General part information

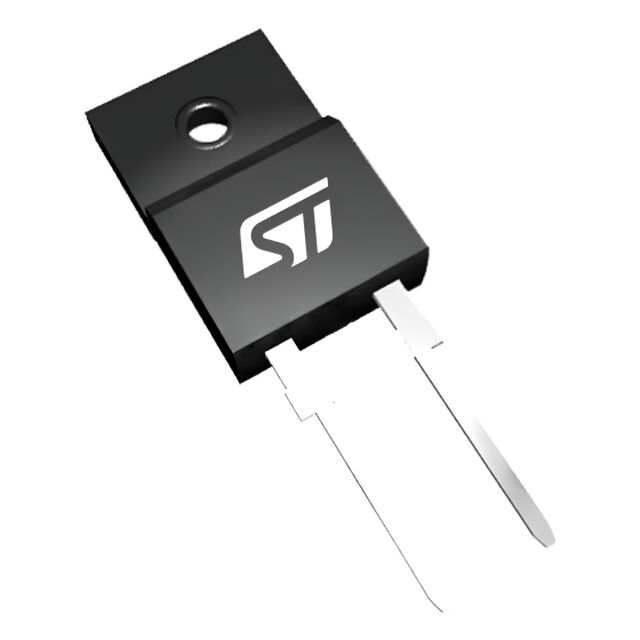

This device, which uses ST Turbo 2 600 V technology, is ideal for switching power supplies and industrial applications as a rectification and discontinuous mode PFC boost diode.
Technical documentation and resources
Parameters and characteristics for this part
| Specification | STTH30AC06FP |
|---|---|
| Current - Average Rectified (Io) | 30 A |
| Current - Reverse Leakage @ Vr | 20 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 °C |
| Package / Case | TO-220-3 Full Pack |
| Reverse Recovery Time (trr) | 60 ns |
| Speed | 200 mA, 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.95 V |
Turbo 2 ultrafast high voltage rectifier
| Part | Mounting Type | Package / Case | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) [Max] | Reverse Recovery Time (trr) | Speed | Operating Temperature - Junction [Max] | Current - Average Rectified (Io) | Technology | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STTH30AC06FP | Through Hole | TO-220-3 Full Pack | 20 µA | 600 V | 60 ns | 200 mA, 500 ns | 175 °C | 30 A | Standard | 1.95 V |
