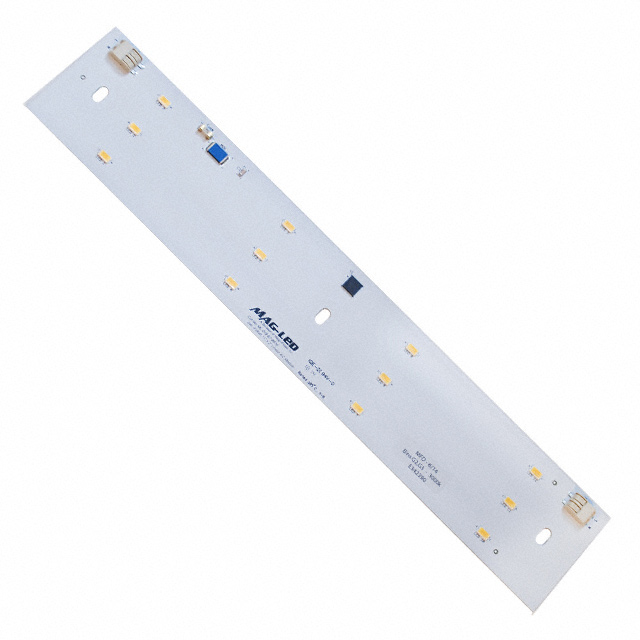

ML-010-07-0016

Active

Mag-LED Solutions

MOD 120V 11"X2" 4W LIN 450LM

Search across all available documentation for this part.

Active

Mag-LED Solutions

MOD 120V 11"X2" 4W LIN 450LM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	100	$ 12.62

General part information

LED Lighting COBs Engines Modules LED Engine Magledium White, Warm Linear Light Strip

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ML-010-07-0016	ML-010 Series

Color	White, Warm	White, Warm
Configuration	Linear Light Strip	Rectangle, Round, Linear Light Strip
Features	With Connector	With Connector
Height [z]	6.12 mm	5.99 - 6.12 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	85 lm/W	85 - 90 lm/W
Luminous Flux @ Current/Temperature	420 lm	420 - 840 lm
Size / Dimension [x]	11 in	4 - 11 in
Size / Dimension [y]	2 in	2 - 76.2 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	120 VAC	120 VAC

MOD 120V 3"X4" 8W SCONCE 900LM

Part	Viewing Angle	Color	Luminous Flux @ Current/Temperature	Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features
Mag-LED Solutions ML-010-07-0008	120 °	Warm, White	840 lm	LED Engine	Rectangle	120 VAC	Flat	90 lm/W	76.2 mm	4 in	6.12 mm
Mag-LED Solutions ML-010-07-0026	120 °	Warm, White			Round	120 VAC
Mag-LED Solutions ML-010-07-0016	120 °	Warm, White	420 lm	LED Engine	Linear Light Strip	120 VAC	Flat	85 lm/W	2 in	11 in	6.12 mm	With Connector
Mag-LED Solutions ML-010-07-0031	120 °	Warm, White	420 lm	LED Engine	Round	120 VAC	Flat	85 lm/W			5.99 mm	With Connector
Mag-LED Solutions ML-010-07-0037	120 °	Warm, White		LED Engine	Round	120 VAC	Flat
Mag-LED Solutions ML-010-07-0009	120 °	Warm, White			Round	120 VAC
Mag-LED Solutions ML-010-07-0014	120 °	Warm, White	630 lm	LED Engine	Linear Light Strip	120 VAC	Flat	88 lm/W	39.37 mm	11 in	6.12 mm	With Connector
