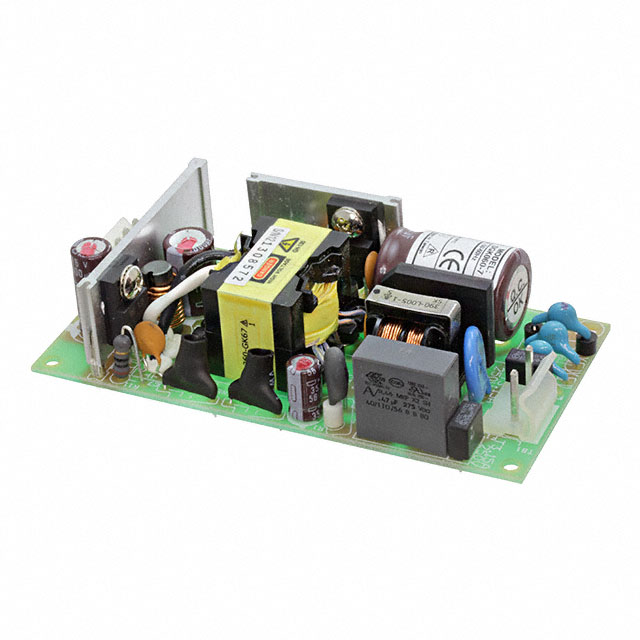

DGK060-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 60W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 12V 60W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Features	Current - Output 1	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1
Tri-Mag, LLC DGK060-7	90 VAC	264 VAC	Universal Input	5 A	1	ITE (Commercial)	24.6 mm	4 in	50.8 mm	101.6 mm	0.97 in	2 in	Open Frame	Chassis Mount	85 %	-20 °C	70 °C	12 V
Tri-Mag, LLC DGK060-8	90 VAC	264 VAC	Universal Input	4 A	1	ITE (Commercial)	24.6 mm	4 in	50.8 mm	101.6 mm	0.97 in	2 in	Open Frame	Chassis Mount	85 %	-20 °C	70 °C	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
