10007290-P0100CULF

Active

Amphenol ICC (FCI)

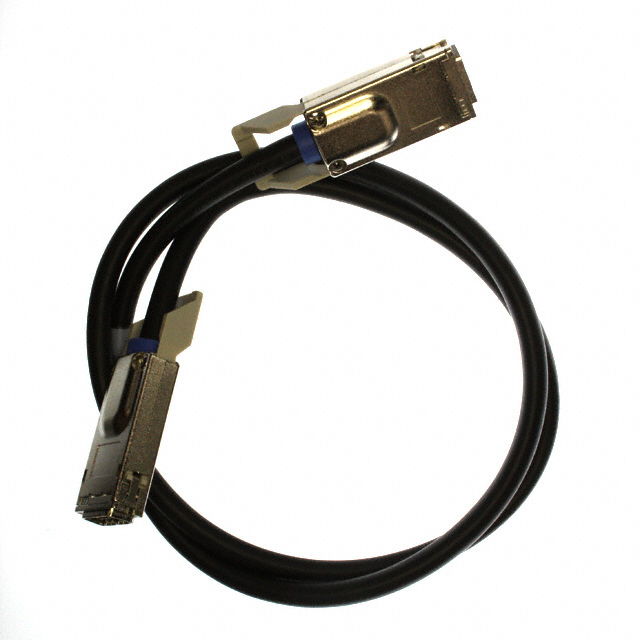

CABLE INFINIBAND 4X M-M 1M

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CABLE INFINIBAND 4X M-M 1M

Technical Specifications

Parameters and characteristics commom to parts in this series

CABLE INFINIBAND 4X M-M 460MM

Part	Wire Gauge	Length	Length	Cable Connectors	Fastening Type	Gender	Frequency - Max [Max]	Number of Positions	Features	Connector Type	Usage	Color	Cable Type	Shielding	Length [x]	Length [x]
Amphenol ICC (FCI) 10007290-R0046CULF	30 AWG	1.51 ft	460 mm	Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded
Amphenol ICC (FCI) 10007290-P0500CULF	28 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded
Amphenol ICC (FCI) 10007290-P0200CULF	28 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded	2 m	6.56 ft
Amphenol ICC (FCI) 10007290-R0150CULF	30 AWG	4.92 '	1.5 m	Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded
Amphenol ICC (FCI) 10007290-R0500CULF	30 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded
Amphenol ICC (FCI) 10007290-R0040CULF	30 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded	400 mm	1.31 ft
Amphenol ICC (FCI) 10007290-P0100CULF	28 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded	1 m	3.28 ft
Amphenol ICC (FCI) 10007290-R0100CULF	30 AWG			Infiniband 4x	Latch Lock	Male to Male	2.5 Gbps	16	Pull Tab, Unequalized	Plug to Plug	External	Black	Round	Shielded	1 m	3.28 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Infiniband 4x Plug to Plug 3.28' (1.00m) Black Shielded

Technical documentation and resources
