Specification	0436400900

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.118 in

043640 Series

Part	Mounting Type	Contact Termination	Fastening Type	Connector Type	Pitch	Color	Number of Rows	Contact Type	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Note	Features
Molex 0436400501	Free Hanging (In-Line)	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	5	Contacts Not Included
Molex 0436401101	Free Hanging (In-Line)	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	11	Contacts Not Included

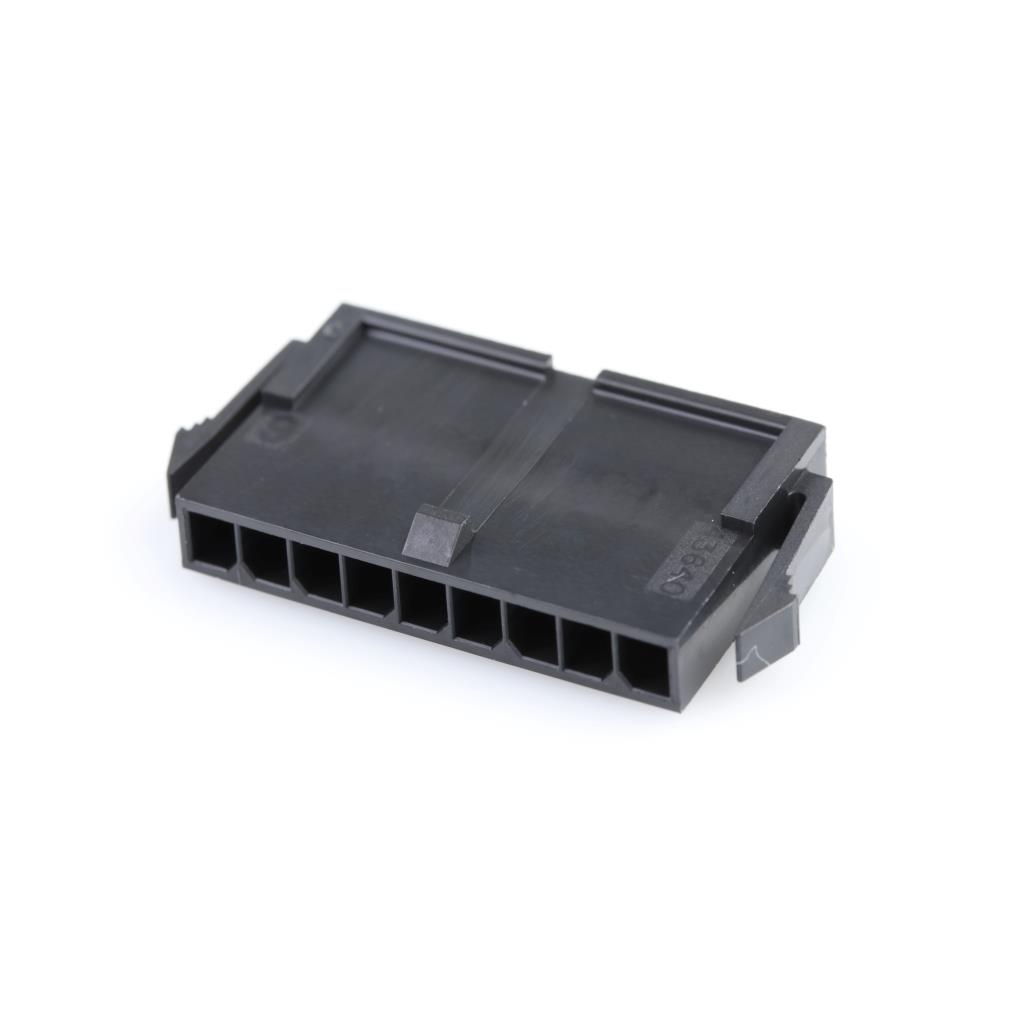

Molex 0436400910	Panel Mount Snap-In	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	125 °C	9

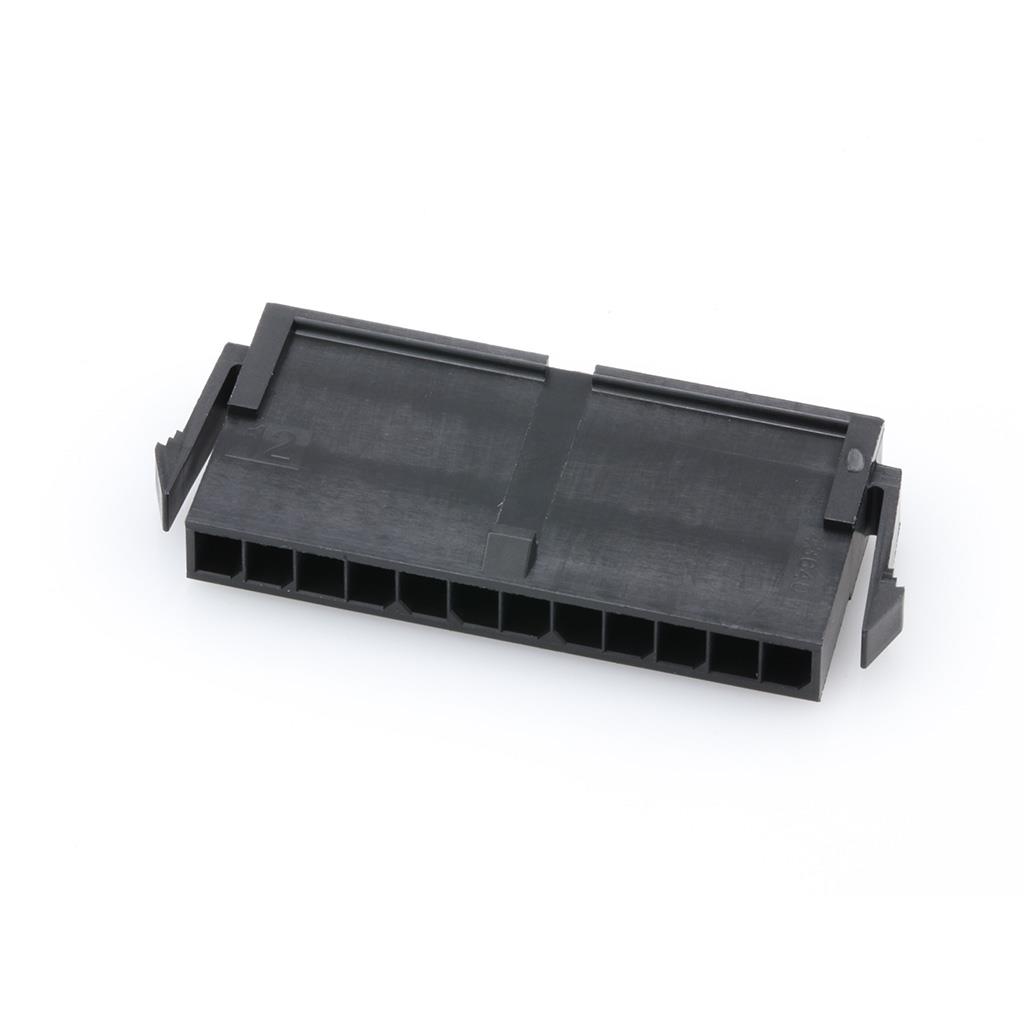

Molex 0436401210	Panel Mount Snap-In	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	125 °C	12		Glow Wire Compliant

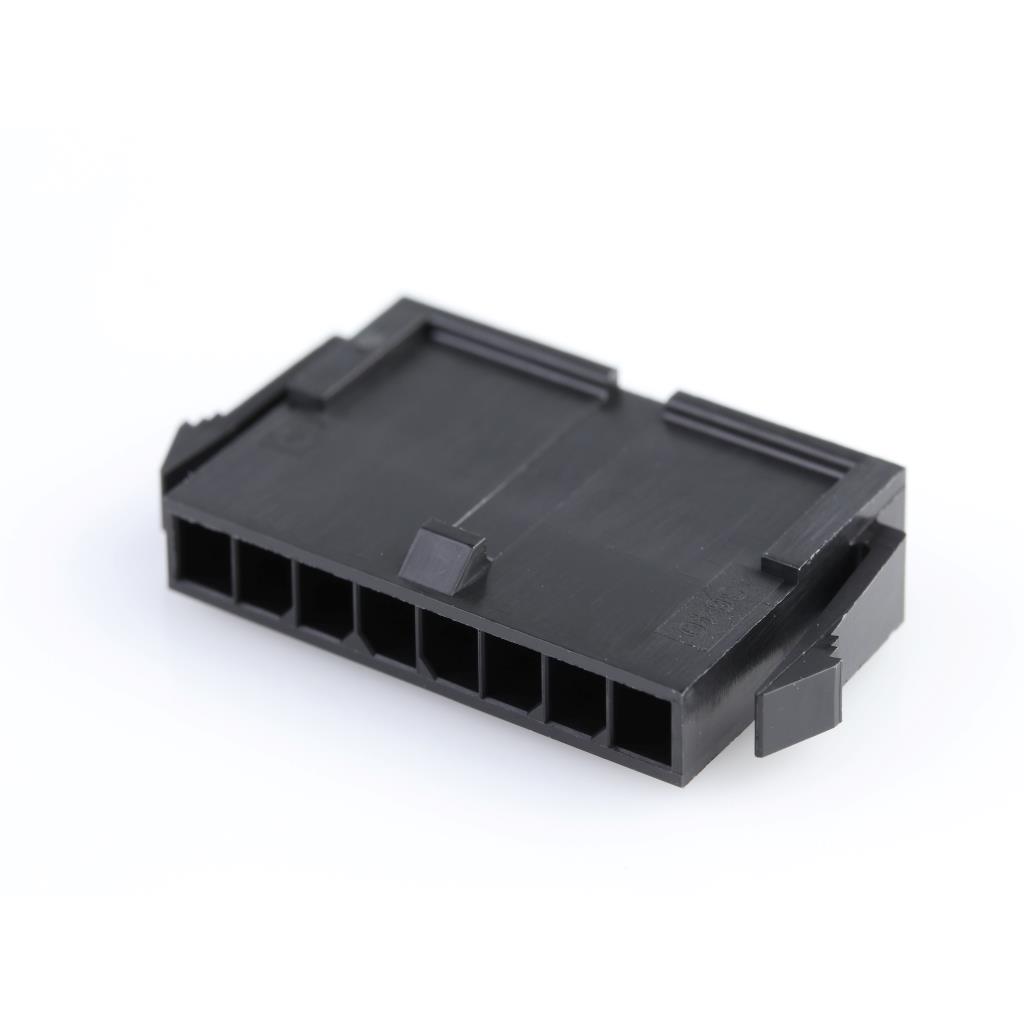

Molex 0436400810	Panel Mount Snap-In	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	125 °C	8
Molex 0436400309	Free Hanging (In-Line)	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	3	Contacts Not Included
Molex 0436400901	Free Hanging (In-Line)	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	9	Contacts Not Included
Molex 0436400600	Panel Mount Snap-In	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	6	Contacts Not Included
Molex 0436400701	Free Hanging (In-Line)	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	7	Contacts Not Included
Molex 0436401100	Panel Mount Snap-In	Crimp	Locking Ramp	Plug	0.118 in	Black	1	Male Pin	Nylon Polyamide (PA)	-40 °C	105 °C	11	Contacts Not Included
