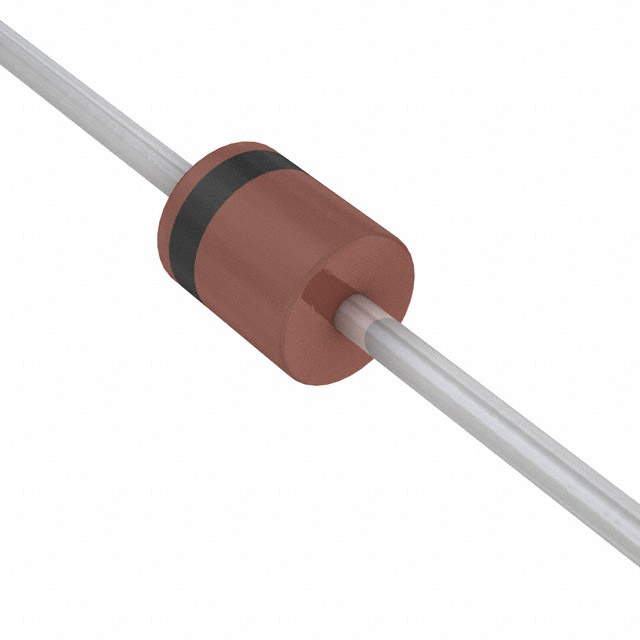

D7G-T

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	D7G-T

Capacitance @ Vr, F	8 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	T1, Axial
Reverse Recovery Time (trr)	2 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	T-1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1 V

NRND = Not Recommended for New Design

Part	Technology	Speed	Speed	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Capacitance @ Vr, F
Diodes Inc D7G-T	Standard	Standard Recovery >500ns	200 mA	T-1	T1 Axial	1 V	150 °C	-65 C	1000 V	2 µs	5 µA	1 A	Through Hole	8 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NRND = Not Recommended for New Design
