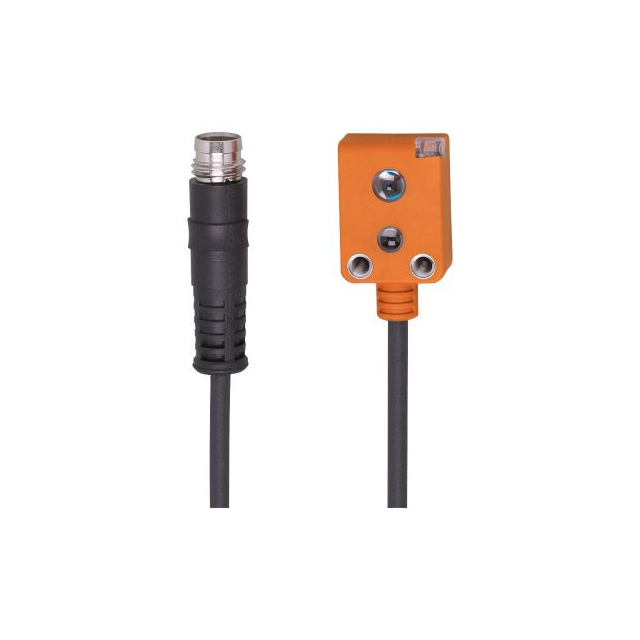

DIFFUSE REFLECTION SENSOR; RED L
O7H201
Activeifm efector, inc.
DIFFUSE REFLECTION SENSOR; RED L
Description
General part information
O7H201
Reflective Optical Sensor 0.197" ~ 1.181" (5mm ~ 30mm) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | O7H201 |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 7.87 in |
| Connection Method | Cable with Connector |
| Current - DC Forward (If) (Max) | 100 mA |
| Ingress Protection | IP65 |
| Light Source | Red LED |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNN - Dark-ON, PNP, Dark-ON |
| Output Type | Transistor |
| Package / Case | Module |
| Sensing Distance Maximum | 1.181 " |
| Sensing Distance Minimum | 0.197 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
