FIT0489-C

Active

DFRobot

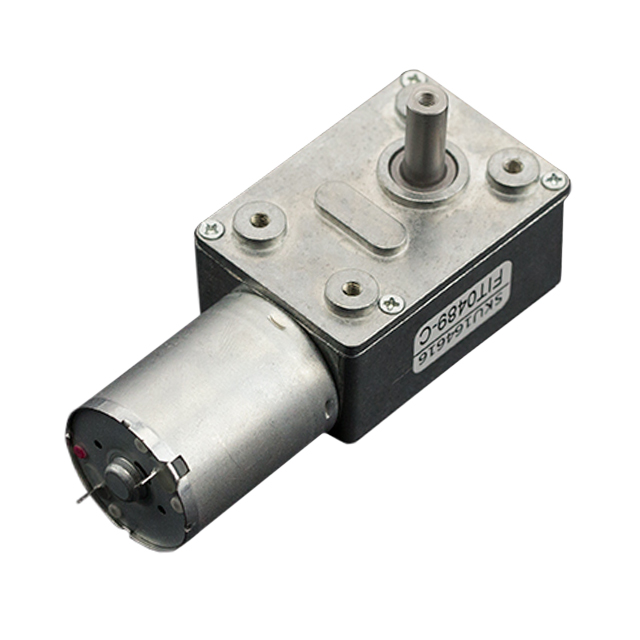

TURBO METAL GEAR WORM MOTOR (12V 160RPM 2.2KG.CM)

Search across all available documentation for this part.

Active

DFRobot

TURBO METAL GEAR WORM MOTOR (12V 160RPM 2.2KG.CM)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.90

General part information

DC Motor Gearmotor 160 RPM 1.1W 12VDC

Technical documentation and resources

Part	Type	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Power - Rated	Termination Style	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Weight	Weight	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Gear Reduction Ratio
DFRobot FIT0489-C	DC Motor	160 RPM	6 mm	0.236 in	1.1 W	Solder Tab	53.94 mNm	7.64 oz-in	0.364 lb	165.11 g	0.728 in	18.5 mm	12 VDC	37.3
DFRobot FIT0489-B	DC Motor	40 RPM	6 mm	0.236 in		Solder Tab	245.2 mNm	34.72 oz-in	0.35 lb	160 g	0.728 in	18.5 mm	6 VDC	150
DFRobot FIT0489-D	DC Motor	40 RPM	6 mm	0.236 in	1.1 W	Solder Tab	215.8 mNm	30.55 oz-in	0.364 lb	165.11 g	0.728 in	18.5 mm	12 VDC	150
