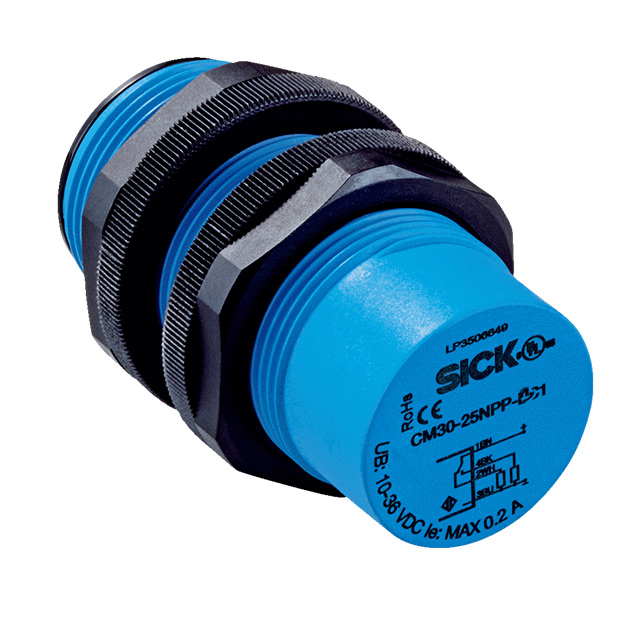

SENSOR PROX CAP 4MM-25MM CYLIND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6058157
ActiveSICK, Inc.
SENSOR PROX CAP 4MM-25MM CYLIND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6058157 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Plastic |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Output Type | 4-Wire, PNP-NC |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 50 Hz |
| Sensing Distance [Max] | 0.984 " |
| Sensing Distance [Max] | 25 mm |
| Sensing Distance [Min] | 4 mm |
| Sensing Distance [Min] | 0.157 " |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 10 VDC |
CM30-25 Series
| Part | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Response Frequency | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Shielding | Ingress Protection | Termination Style | Material - Body | Indicator [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | Capacitive | -30 °C | 85 °C | 4-Wire PNP-NC/NO | Cylinder Threaded - M30 | 10 VDC | 36 V | 50 Hz | 0.984 " | 4 mm | 25 mm | 0.157 " | Shielded | IP68 IP69K | Cable Leads | Plastic | No Indicator |
SICK, Inc. | Capacitive | -30 °C | 85 °C | NPN-NC/NO 4-Wire | Cylinder Threaded - M30 | 10 VDC | 36 V | 50 Hz | 0.984 " | 4 mm | 25 mm | 0.157 " | Shielded | IP68 IP69K | Cable Leads | Plastic | No Indicator |
SICK, Inc. | Capacitive | -30 °C | 85 °C | 4-Wire PNP-NC | Cylinder Threaded - M30 | 10 VDC | 36 V | 50 Hz | 0.984 " | 4 mm | 25 mm | 0.157 " | Unshielded | IP68 IP69K | Connector | Plastic | LED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 180.66 | |
| 10 | $ 165.61 | |||
Description
General part information
CM30-25 Series
SENSOR PROX CAP 4MM-25MM CYLIND
