MAP-57-30
ActiveAmphenol NEXUS Technologies

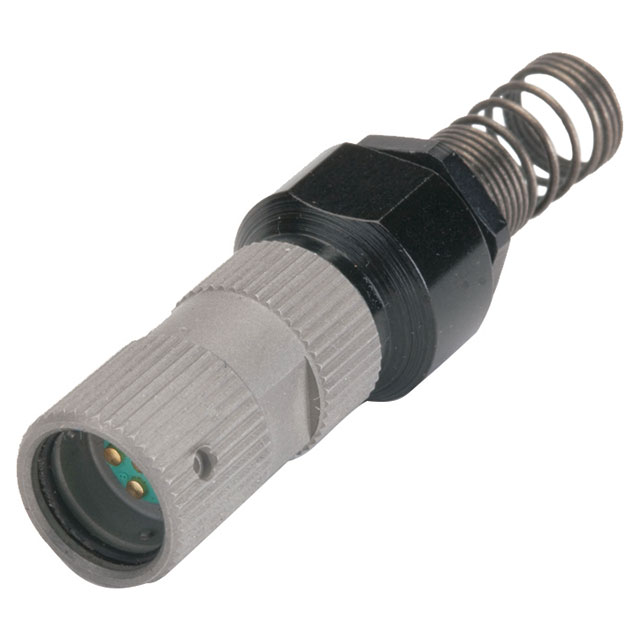

CONN PLUG FMALE 7POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAP-57-30
ActiveAmphenol NEXUS Technologies
CONN PLUG FMALE 7POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAP-57-30 |
|---|---|
| Applications | Communication Systems, Military, Audio, Video |
| Cable Opening [custom] | 6.35 mm |
| Cable Opening [custom] | 0.25 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 0.5 A |
| Fastening Type | Bayonet Lock |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Passivated |
| Shell Material | Stainless Steel |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 83.79 | |
| 10 | $ 76.89 | |||
| 25 | $ 73.93 | |||
| 50 | $ 71.47 | |||
| 100 | $ 67.52 | |||
Description
General part information
MAP-57-30
7 Position Circular Connector Plug, Female Sockets Solder Cup
