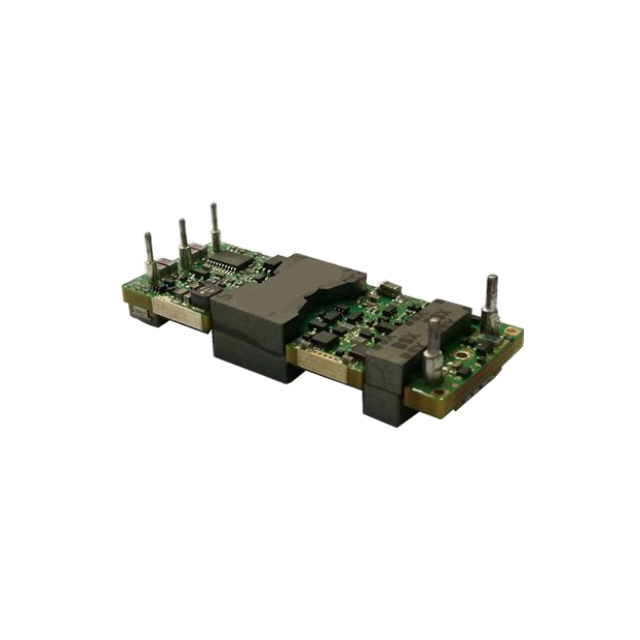

EBE4120N022N76

Active

NetPower

DC DC CONVERTER 12V 264W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 264W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 360W

Part	Features	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Isolation	Number of Outputs	Efficiency	Applications	Supplier Device Package	Type	Package / Case	Control Features	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]
NetPower EBE4120N030N76	Baseplate, Remote On/Off	30 A	12 V	Through Hole	85 °C	-40 °C	75 V	360 W	2250 VDC	1	95 %	ITE (Commercial)	Eighth Brick	Isolated Module	Eighth Brick	Active Low, Enable	36 V	22.8 mm	2.3 "	0.9 in	12.2 mm	58.4 mm	0.5 "
NetPower EBE4120N022N76	Baseplate, Remote On/Off	22 A	12 V	Through Hole	85 °C	-40 °C	75 V	264 W	2250 VDC	1	95 %	ITE (Commercial)	Eighth Brick	Isolated Module	Eighth Brick	Active Low, Enable	36 V	22.8 mm	2.3 "	0.9 in	12.2 mm	58.4 mm	0.5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 70.30

General part information

Isolated Module DC DC Converter 1 Output 12V 22A 36V - 75V Input
