021I,GY

Active

Serpac

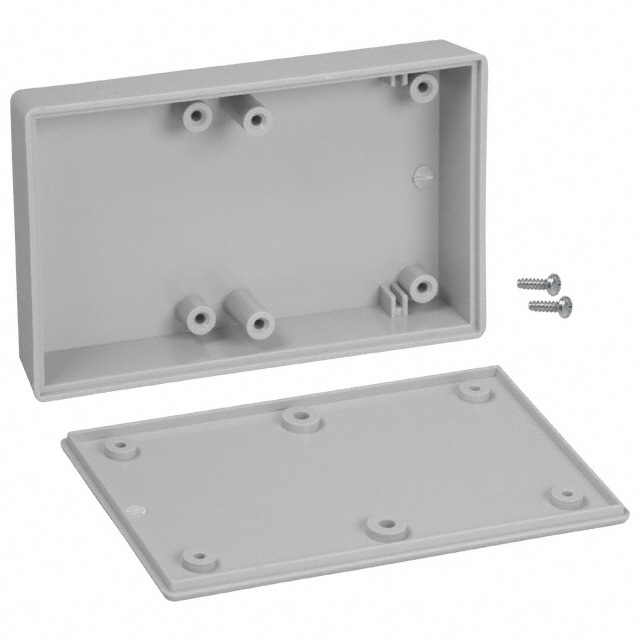

BOX ABS GRAY 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	021I,GY	021I Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Gray	Gray, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.121 lb	0.121 lb
Weight	54.88 g	54.88 g

BOX ABS GRAY 4.1"L X 2.6"W

Part	Thickness	Thickness	Material	Material Flammability Rating	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Ratings	Height [z]	Height [z]	Color	Features	Area (L x W)	Area (L x W)	Weight	Weight
Serpac 021I,GY	2.54 mm	0.1 in	Plastic, ABS	UL94 HB	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	Cover Included, Hand Held	IP40, NEMA 1	22.86 mm	0.9 in	Gray	PCB Supports	10.7 in²	69 cm²	0.121 lb	54.88 g
Serpac 021I,AL	2.54 mm	0.1 in	Plastic, ABS	UL94 HB	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	Cover Included, Hand Held	IP40, NEMA 1	22.86 mm	0.9 in	Almond	PCB Supports	10.7 in²	69 cm²	0.121 lb	54.88 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.07

General part information

Box Plastic, ABS Gray Hand Held, Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
