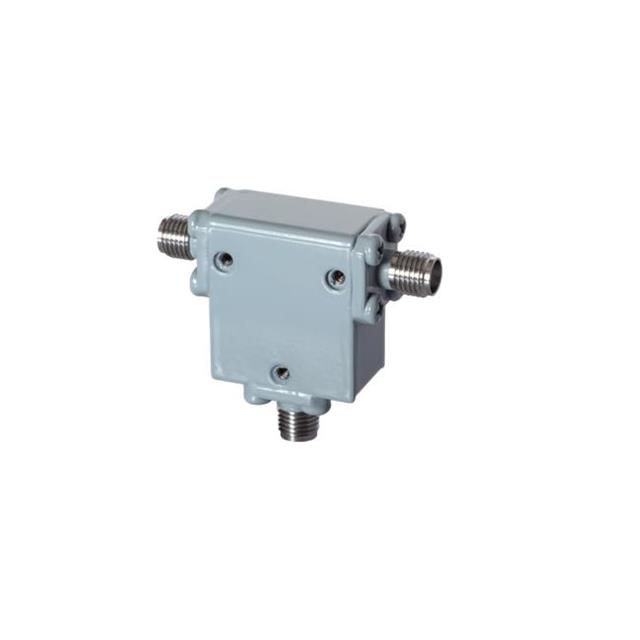

DHC8012
ActiveDiTom Microwave
8.00 - 12.00 GHZ HI-REL CIRCULAT
DHC8012
ActiveDiTom Microwave
8.00 - 12.00 GHZ HI-REL CIRCULAT
Description
General part information
DHC8012
8.00 - 12.00 GHZ HI-REL CIRCULAT
Technical Specifications
Parameters and characteristics for this part
| Specification | DHC8012 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency (Max) | 12.4 GHz |
| Frequency (Min) | 8 GHz |
| Insertion Loss (Max) | 0.5 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 25 W |
| Type | Circulator |
| VSWR | 1.25 |
