330-8672-100

Active

Sure-Seal

CON MSS PIN 18-20 TIN

Search across all available documentation for this part.

Active

Sure-Seal

CON MSS PIN 18-20 TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

CON MSS PIN 18-20 TIN

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Type	Contact Material	Termination Finish	Contact Termination	Contact Finish	Type
Sure-Seal 330-8672-100	18 AWG	20 AWG	0.4 mm²	0.75 mm²	Pin	Copper Alloy	Tin	Crimp	Tin	Power, Stamped
Sure-Seal 330-8672-005	18 AWG	20 AWG	0.4 mm²	0.75 mm²	Pin	Copper Alloy		Crimp	Silver	Machined
Sure-Seal 330-8672-008	12 AWG	14 AWG	2.5 mm²	4 mm²	Pin	Copper Alloy		Crimp	Silver	Machined

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

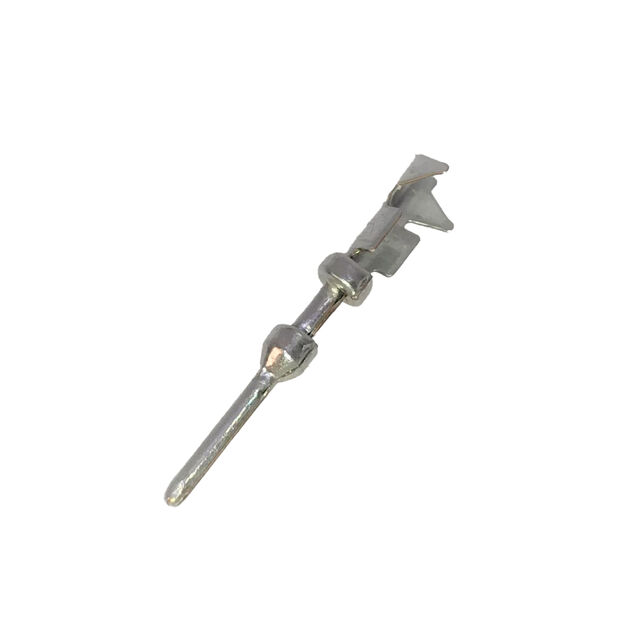

Pin Contact 18-20 AWG Size Crimp Tin

Technical documentation and resources
