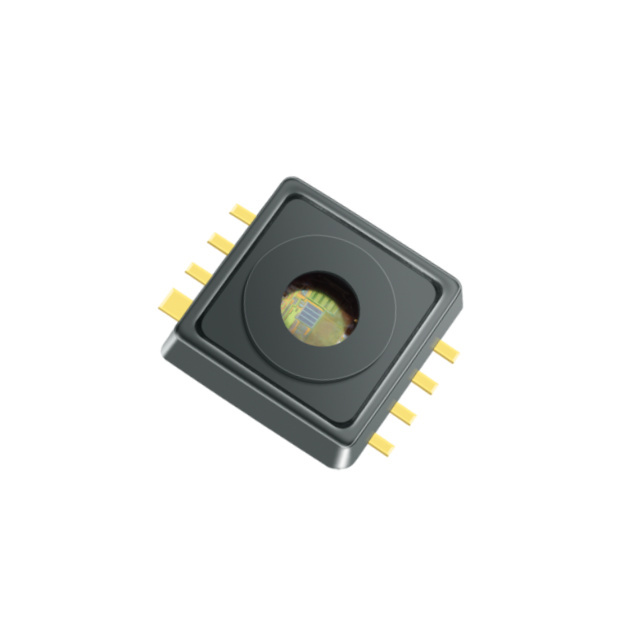

KP275E2616XTMA1
ObsoleteInfineon Technologies
SENSOR 58.02PSIA 12BIT DSOF8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KP275E2616XTMA1
ObsoleteInfineon Technologies
SENSOR 58.02PSIA 12BIT DSOF8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KP275E2616XTMA1 |
|---|---|
| Accuracy | 0.77 % |
| Features | Temperature Compensated |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 4 bar |
| Operating Pressure [Max] | 58.02 PSI |
| Operating Pressure [Min] | 1.45 PSI |
| Operating Pressure [Min] | 0.1 bar |
| Output | 12 b |
| Output Type | 1.81 mOhm |
| Package / Case | 8-SMD Module |
| Port Style | No Port |
| Supplier Device Package | PG-DSOF-8-162 |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KP275E2616 Series
Pressure Sensor 1.45 ~ 58.02PSI (10kPa ~ 400kPa) Absolute 12 b 8-SMD Module
