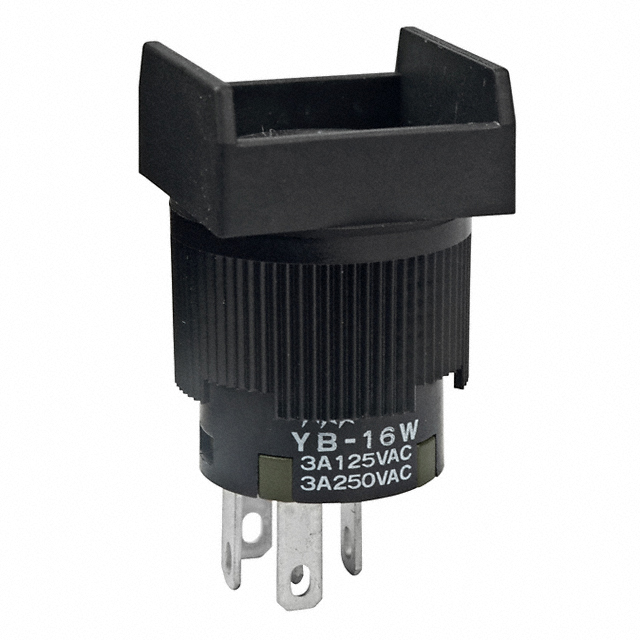

YB16WSKW01

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16WSKW01

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.48
		10	$ 13.88
		25	$ 13.27
		40	$ 12.58
		80	$ 12.12
		230	$ 11.36
		440	$ 10.52
		945	$ 9.44
Newark	Each	1	$ 31.47
		5	$ 29.89
		10	$ 27.71
		25	$ 25.28
		50	$ 21.87
		100	$ 20.42
		250	$ 18.59

Description

General part information

YB16WS Series

Pushbutton Switch SPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB16WSKW01	YB16WS Series

Actuator Marking	No Marking	No Marking
Actuator Type	Plunger for Cap	Button, Square, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	-	Clear, White, Blue, Red, Clear (Red Filter/Diffuser), Yellow (White Filter/Diffuser)
Current Rating (Amps)	3 A	0.4 - 3 VA
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	-	Green/Red, LED, White, Green, Amber, Blue, Red
Illumination Voltage (Nominal)	-	1.9 - 24 V
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB16WS Series

SWITCH PUSH SPDT 0.4VA 28V

Part	Current Rating (Amps)	Voltage Rating - DC	Features	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Circuit	Type	Ingress Protection	Actuator Marking	Switch Function	Mechanical Life	Actuator Type	Electrical Life	Voltage Rating - AC	Mounting Type	Illumination Voltage (Nominal)
NKK SWITCHES YB16WSKG01-2CF24-JB	0.4 VA	28 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	28 V	Panel Mount, Front	24 V
NKK SWITCHES YB16WSKW01-BB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm		White	70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-6B-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	LED, White	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	3.3 VDC
NKK SWITCHES YB16WSKW01-GB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm		Blue	70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-5F-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	2.2 VDC
NKK SWITCHES YB16WSKW03	3 A	30 V	Tactile Feedback		PC Pin				70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Plunger for Cap	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-6F-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	3.3 VDC
NKK SWITCHES YB16WSKW01-2CF02-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	2 VDC
NKK SWITCHES YB16WSKW01-2CF24-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	24 V
NKK SWITCHES YB16WSKG01-5F24-JF	0.4 VA	28 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	28 V	Panel Mount, Front	24 V
