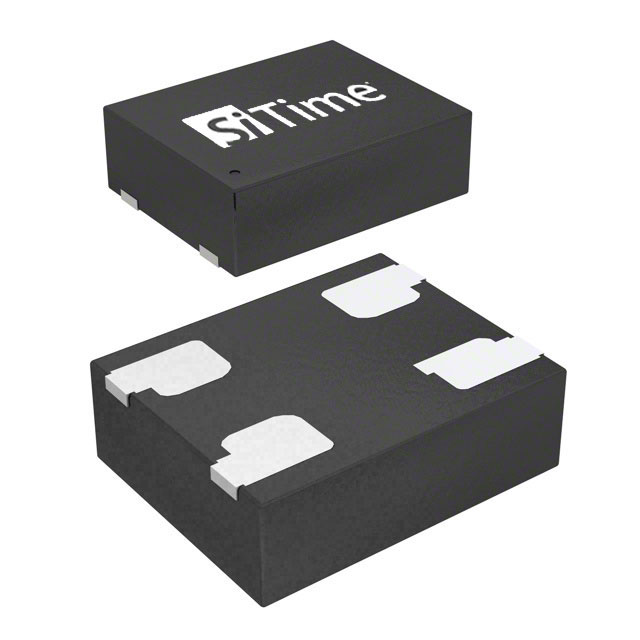

CS00095AC-J1-DCC-32.7707E

Active

SiTime

32.770KHZ, 20PPM, 1P5X0.8 WCSP

Search across all available documentation for this part.

Active

SiTime

32.770KHZ, 20PPM, 1P5X0.8 WCSP

Technical Specifications

Parameters and characteristics commom to parts in this series

32.770KHZ, 20PPM, 1P5X0.8 WCSP

Part	Frequency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Output	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
SiTime CS00095AC-J1-DCC-32.7707E	32.7707 kHz	4-UFBGA, CSPBGA	1.54 mm	0.84 mm	0.033 in	0.061 in	LVCMOS	20 ppm	-20 C	70 °C	Surface Mount	TCXO	MEMS	0.6 mm	0.024 in
SiTime CS00095AC-J1-DCC-32.7707	32.7707 kHz	4-UFBGA, CSPBGA	1.54 mm	0.84 mm	0.033 in	0.061 in	LVCMOS	20 ppm	-20 C	70 °C	Surface Mount	TCXO	MEMS	0.6 mm	0.024 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.16

General part information

32.7707 kHz TCXO LVCMOS Oscillator 4-UFBGA, CSPBGA
