PE0S0SM6E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
PE0S0SM6E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PE0S0SM6E | PE0S Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A | 3 - 10 A |
| Current Rating - Filter | 6 A | 3 - 10 A |
| Features | Conversion Clip | Conversion Clip, Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder, Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Cutout Dimensions | - | 55.91 mm |
| Panel Cutout Dimensions | - | 28.45 mm |
| Panel Thickness [Max] | 2.9 mm | 2.9 mm |
| Panel Thickness [Max] | 0.114 in | 0.114 in |
| Panel Thickness [Min] | 0.79 mm | 0.79 mm |
| Panel Thickness [Min] | 0.031 " | 0.031 " |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.187 " | 0.187 " |
| Termination | 4.7 mm | 4.7 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 120 VAC | 120 VAC |
| Voltage Rating - Appliance Inlet | - | 250 VAC |
| Voltage Rating - Appliance Inlet | - | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24 | $ 41.07 | |
PE0S Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Style | Mounting Type | Accomodates a Fuse | Approval Agency | Switch Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Type | Current Rating - Appliance Inlet | Features | Termination | Termination | Termination | Fuse Holder, Drawer | Current Rating - Filter | Filter Type | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Panel Cutout Dimensions | Voltage Rating - Appliance Inlet | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors PE0S0SM3E | IEC 320-C14 | Flange, Panel Mount | CSA, UL, VDE | Switch On-Off | 55.91 mm | 28.45 mm | Receptacle, Male Blades - Module | 3 A | Conversion Clip, Shielded | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder | 3 A | Filtered (EMI, RFI) - Commercial | 250 VAC | 120 VAC | |||||||
TE Connectivity AMP Connectors PE0S0DMXE | IEC 320-C14 | Flange, Panel Mount | CSA, UL, VDE | Switch On-Off | 55.91 mm | 28.45 mm | Receptacle, Male Blades - Module | 10 A | Shielded | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder, Twin Fused | 10 A | Filtered (EMI, RFI) - Commercial | 250 VAC | 120 VAC | |||||||
TE Connectivity AMP Connectors PE0S0SM6E | IEC 320-C14 | Flange, Panel Mount | CSA, UL, VDE | Switch On-Off | Receptacle, Male Blades - Module | 6 A | Conversion Clip | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder | 6 A | Filtered (EMI, RFI) - Commercial | Variable Size | 120 VAC | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | |||||
TE Connectivity AMP Connectors PE0S0DM3E | IEC 320-C14 | Flange, Panel Mount | CSA, UL, VDE | Switch On-Off | 55.91 mm | 28.45 mm | Receptacle, Male Blades - Module | 3 A | Shielded | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder, Twin Fused | 3 A | Filtered (EMI, RFI) - Commercial | 250 VAC | 120 VAC | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " |
Description
General part information
PE0S Series

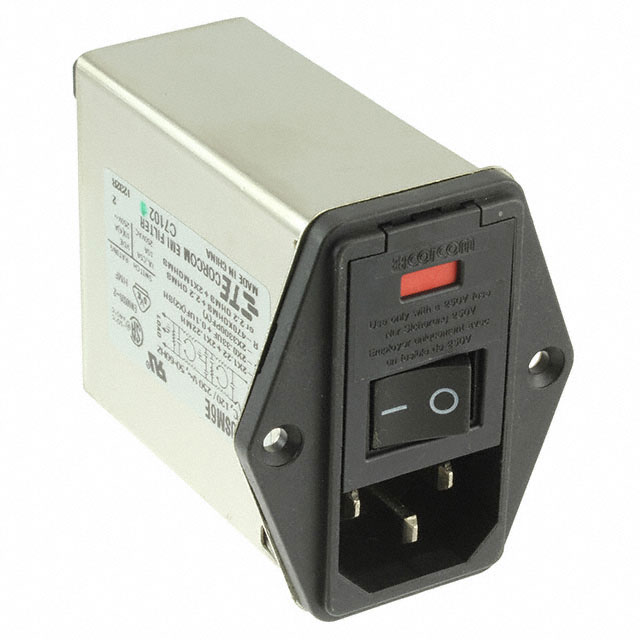

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Documents
Technical documentation and resources
No documents available
