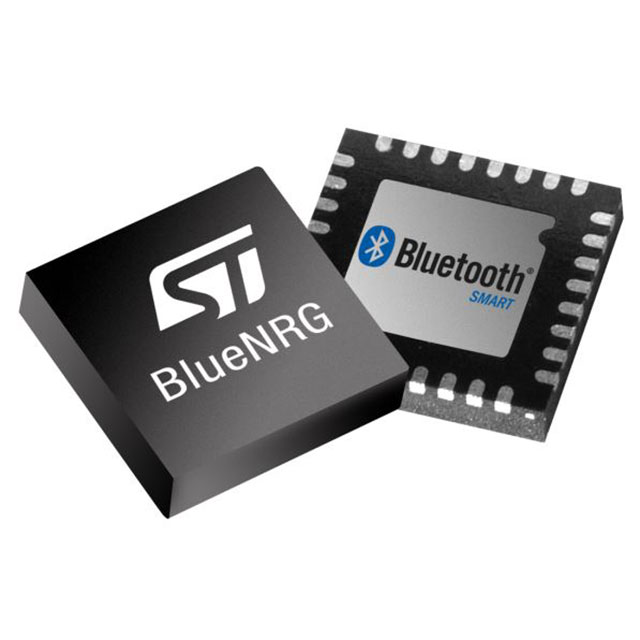

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLUENRG-232N | BLUENRG Series |
|---|---|---|
| - | - | |
| Antenna Type | - | Integrated, Chip, PCB Trace |
| Current - Receiving | - | 3.4 - 16.36 mA |
| Current - Receiving [Max] | 14.5 mA | 14.5 mA |
| Current - Receiving [Min] | 7.7 mA | 7.3 - 7.7 mA |
| Current - Transmitting | - | 4.3 mA |
| Current - Transmitting [Max] | 28.8 mA | 14.78 - 33.9 mA |
| Current - Transmitting [Min] | 6.6 mA | 5.8 - 13.7 mA |
| Data Rate (Max) | 1 Mbps | 1 - 2 Mbps |
| Data Rate (Max) | - | 32 Mbps |
| Frequency | - | 2.4 GHz |
| Frequency [Max] | 2.4835 GHz | 2.48 - 2.4835 GHz |
| Frequency [Min] | 2.4 GHz | 2.4 GHz |
| GPIO | 15 | 14 - 32 |
| Grade | - | Automotive |
| Memory Size | - | 12 - 64 kB |
| Memory Size | - | 64 - 256 kB |
| Memory Size | - | 24 - 256 kB |
| Memory Size | - | 7 kB |
| Memory Size | - | 1 kB |
| Modulation | GFSK | GFSK |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 32-VFQFN Exposed Pad | 11-SMD Module, 49-XFBGA, WLCSP, 36-XFBGA, 32-VFQFN Exposed Pad, 34-XFBGA, 23-SMD Module, 20-SMD Module, 48-TFQFN Exposed Pad, 48-VFQFN Exposed Pad |
| Power - Output | 8 dBm | 5 - 10 dBm |
| Protocol | Bluetooth v5.0 | Bluetooth v4.2, Bluetooth v5.2, Bluetooth v5.3, Bluetooth v4.1, Bluetooth v5.0, Bluetooth v4.0, Bluetooth v5.1 |
| Qualification | - | AEC-Q100 |
| RF Family/Standard | Bluetooth | Bluetooth |
| Sensitivity | -88 dBm | -104 - -85 dBm |
| Serial Interfaces | UART, SPI | SPI, USART, PCM, I2C, PWM, I2S, JTAG, ADC, GPIO, UART |
| Supplier Device Package | 32-QFN (5x5) | 49-WLCSP, 36-WLCSP, 32-QFN (5x5), 34-WLCSP, 48-QFN (6x6) |
| Supplier Device Package | - | 2.65 - 3.14 |
| Supplier Device Package | - | 2.56 - 3.14 |
| Type | TxRx + MCU | TxRx + MCU |
| Utilized IC / Part | - | BlueNRG-MS, BlueNRG-2 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 - 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.23 | |
| 10 | $ 3.77 | |||
| 25 | $ 3.40 | |||
| 100 | $ 3.10 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.11 | |||
| Digi-Reel® | 1 | $ 4.23 | ||
| 10 | $ 3.77 | |||
| 25 | $ 3.40 | |||
| 100 | $ 3.10 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.11 | |||
| Tape & Reel (TR) | 3000 | $ 2.01 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.22 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.51 | |||
| 50 | $ 2.44 | |||
| 100 | $ 2.37 | |||
| 250 | $ 2.25 | |||
| 500 | $ 2.18 | |||
| 1000 | $ 2.10 | |||
BLUENRG Series
Programmable Bluetooth Low Energy 5.3 Wireless SoC
| Part | Mounting Type | Frequency [Min] | Frequency [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity | Current - Receiving | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Current - Transmitting [Min] | Current - Transmitting [Max] | RF Family/Standard | Serial Interfaces | Utilized IC / Part | Package / Case | Antenna Type | Power - Output | Frequency | GPIO | Data Rate (Max) | Modulation | Type | Current - Transmitting | Memory Size [custom] | Memory Size [custom] | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Memory Size | Grade | Memory Size [custom] | Memory Size [custom] | Data Rate (Max) [Max] | Qualification | Current - Receiving [Max] | Current - Receiving [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BLUENRG-M0L | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M0A | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M2SP | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-234 | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-345MC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M0L | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -85 dBm | 16.36 mA | Bluetooth v4.2 | 85 °C | -40 °C | 13.25 mA | 27.35 mA | Bluetooth | SPI | BlueNRG-MS | 11-SMD Module | Integrated, Chip | 6 dBm | |||||||||||||||||||
STMicroelectronics BLUENRG-355VT | Surface Mount | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.2 | 105 °C | -40 °C | Bluetooth | I2C, I2S, JTAG, PCM, PWM, SPI, USART | 49-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 30 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 64 kB | 256 kB | 3.14 | 49-WLCSP | 3.14 | ||||||||||||||
STMicroelectronics BLUENRG-345VT | Surface Mount | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.2 | 105 °C | -40 °C | Bluetooth | I2C, I2S, JTAG, PCM, PWM, SPI, USART | 49-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 30 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 3.14 | 49-WLCSP | 3.14 | 32 kB, 256 kB | |||||||||||||||
STMicroelectronics BLUENRG-332VT | Surface Mount | 2.4 GHz | 2.48 GHz | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.3 | 105 °C | -40 °C | Bluetooth | ADC, GPIO, I2C, I2S, JTAG, PCM, PWM, SPI, USART | 36-XFBGA, WLCSP | 8 dBm | 20 | GFSK | TxRx + MCU | 4.3 mA | 24 kB | 192 kB | 2.65 | 36-WLCSP | 2.59 | Automotive | 7 kB | 1 kB | 32 Mbps | AEC-Q100 | |||||||||
STMicroelectronics BLUENRG-345VC | Surface Mount | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.2 | 85 °C | -40 °C | Bluetooth | I2C, I2S, JTAG, PCM, PWM, SPI, USART | 49-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 30 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 3.14 | 49-WLCSP | 3.14 | 32 kB, 256 kB | |||||||||||||||
STMicroelectronics BLUENRG-345MC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355MT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M0L | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-248 | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRGCSP | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-MSQTR | Surface Mount | 3.6 V | 1.7 V | -88 dBm | Bluetooth v4.1 | 85 °C | -40 °C | 5.8 mA | 28.8 mA | Bluetooth | SPI | 32-VFQFN Exposed Pad | 8 dBm | 2.4 GHz | 1 Mbps | GFSK | TxRx + MCU | 12 kB | 64 kB | 32-QFN (5x5) | 14.5 mA | 7.3 mA | |||||||||||||||
STMicroelectronics BLUENRG-232N | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -88 dBm | Bluetooth v5.0 | 105 ░C | -40 °C | 6.6 mA | 28.8 mA | Bluetooth | SPI, UART | 32-VFQFN Exposed Pad | 8 dBm | 15 | 1 Mbps | GFSK | TxRx + MCU | 32-QFN (5x5) | 14.5 mA | 7.7 mA | |||||||||||||||
STMicroelectronics BLUENRG-M2SA | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355VC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-345VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-234N | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-232N | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-332AC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355VC | Surface Mount | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.2 | 85 °C | -40 °C | Bluetooth | I2C, I2S, JTAG, PCM, PWM, SPI, USART | 49-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 30 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 64 kB | 256 kB | 3.14 | 49-WLCSP | 3.14 | ||||||||||||||
STMicroelectronics BLUENRG-234 | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-MSQTR | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-234N | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -88 dBm | Bluetooth v5.0 | 105 ░C | -40 °C | 6.6 mA | 28.8 mA | Bluetooth | SPI, UART | 34-XFBGA, WLCSP | 8 dBm | 14 | 1 Mbps | GFSK | TxRx + MCU | 2.66 | 34-WLCSP | 2.56 | 14.5 mA | 7.7 mA | |||||||||||||
STMicroelectronics BLUENRG-M0A | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-MSQTR | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-MSCSP | Surface Mount | 3.6 V | 1.7 V | -88 dBm | Bluetooth v4.1 | 85 °C | -40 °C | 5.8 mA | 28.8 mA | Bluetooth | SPI | 34-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 1 Mbps | GFSK | TxRx + MCU | 12 kB | 64 kB | 2.66 | 34-WLCSP | 2.56 | 14.5 mA | 7.3 mA | |||||||||||||
STMicroelectronics BLUENRG-M2SP | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-345VC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M2SA | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-332AC | Surface Mount | 2.4 GHz | 2.48 GHz | 3.6 V | 1.7 V | -104 dBm | 3.4 mA | Bluetooth v5.3 | 85 °C | -40 °C | Bluetooth | ADC, GPIO, I2C, I2S, JTAG, PCM, PWM, SPI, USART | 32-VFQFN Exposed Pad | 8 dBm | 20 | GFSK | TxRx + MCU | 4.3 mA | 24 kB | 192 kB | 32-QFN (5x5) | Automotive | 7 kB | 1 kB | 32 Mbps | AEC-Q100 | |||||||||||
STMicroelectronics BLUENRG-345VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M0A | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -85 dBm | 9.36 mA | Bluetooth v4.2 | 85 °C | -40 °C | 7.82 mA | 16.5 mA | Bluetooth | SPI | BlueNRG-MS | 11-SMD Module | Integrated, Chip | 6 dBm | |||||||||||||||||||
STMicroelectronics BLUENRG-M0L | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-345VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M0A | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRGCSP | Surface Mount | 3.6 V | 2 V | -88 dBm | Bluetooth v4.0 | 85 °C | -40 °C | 5.8 mA | 28.8 mA | Bluetooth | SPI | 34-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 1 Mbps | GFSK | TxRx + MCU | 12 kB | 64 kB | 2.66 | 34-WLCSP | 2.56 | 14.5 mA | 7.3 mA | |||||||||||||
STMicroelectronics BLUENRG-M2SA | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -85 dBm | 7.55 mA | Bluetooth v5.0 | 85 °C | -40 °C | 7.01 mA | 14.78 mA | Bluetooth | ADC, GPIO, I2C, SPI, UART | BlueNRG-2 | 23-SMD Module | Integrated, Chip | 5 dBm | 24 kB, 256 kB | ||||||||||||||||||
STMicroelectronics BLUENRG-355VC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-248 | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-234 | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355MT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-M2SP | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -85 dBm | 15 mA | Bluetooth v5.0 | 85 °C | -40 °C | 13.7 mA | 33.9 mA | Bluetooth | ADC, GPIO, I2C, SPI, UART | BlueNRG-2 | 20-SMD Module | PCB Trace | 7 dBm | 24 kB, 256 kB | ||||||||||||||||||
STMicroelectronics BLUENRG-345MC | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -97 dBm | 3.4 mA | Bluetooth v5.2 | 105 ░C | -40 °C | Bluetooth | I2C, SPI | 48-TFQFN Exposed Pad | 8 dBm | 32 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 64 kB | 256 kB | 48-QFN (6x6) | |||||||||||||||
STMicroelectronics BLUENRG-355MT | Surface Mount | 2.4 GHz | 2.4835 GHz | 3.6 V | 1.7 V | -97 dBm | 3.4 mA | Bluetooth v5.1 | 105 ░C | -40 °C | Bluetooth | I2C, SPI | 48-TFQFN Exposed Pad | 8 dBm | 32 | 2 Mbps | GFSK | TxRx + MCU | 4.3 mA | 64 kB | 256 kB | 48-QFN (6x6) | |||||||||||||||
STMicroelectronics BLUENRG-345MC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-332AC | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-232N | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355MT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-248 | Surface Mount | 3.6 V | 1.7 V | -88 dBm | Bluetooth v5.0 | 105 ░C | -40 °C | 6.6 mA | 28.8 mA | Bluetooth | I2C, SPI, UART | 48-VFQFN Exposed Pad | 10 dBm | 2.4 GHz | 15 | 2 Mbps | GFSK | TxRx + MCU | 48-QFN (6x6) | 24 kB, 256 kB | 14.5 mA | 7.7 mA | |||||||||||||||
STMicroelectronics BLUENRG-332VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-355VT | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-MSCSP | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRGQTR | Surface Mount | 3.6 V | 2 V | -88 dBm | Bluetooth v4.0 | 85 °C | -40 °C | 5.8 mA | 28.8 mA | Bluetooth | SPI | 32-VFQFN Exposed Pad | 8 dBm | 2.4 GHz | 1 Mbps | GFSK | TxRx + MCU | 12 kB | 64 kB | 32-QFN (5x5) | 14.5 mA | 7.3 mA | |||||||||||||||
STMicroelectronics BLUENRG-MSCSP | |||||||||||||||||||||||||||||||||||||
STMicroelectronics BLUENRG-234 | Surface Mount | 3.6 V | 1.7 V | -88 dBm | Bluetooth v5.0 | 105 ░C | -40 °C | 6.6 mA | 28.8 mA | Bluetooth | I2C, SPI, UART | 34-XFBGA, WLCSP | 8 dBm | 2.4 GHz | 14 | 1 Mbps | GFSK | TxRx + MCU | 2.66 | 34-WLCSP | 2.56 | 24 kB, 256 kB | 14.5 mA | 7.7 mA | |||||||||||||
STMicroelectronics BLUENRG-345VC |
Description
General part information
BLUENRG Series
The BlueNRG-LP is an ultra-low power programmable Bluetooth®Low Energy wireless SoC solution. It embeds STMicroelectronics’s state-of-art 2.4 GHz RF radio IPs combining unparalleled performance with extremely long-battery lifetime. It is compliant with Bluetooth®Low Energy SIG core specification version 5.2 addressing point-to-point connectivity and Bluetooth Mesh networking and allows large-scale device networks to be established in a reliable way. The BlueNRG-LP is also suitable for 2.4 GHz proprietary radio wireless communication to address ultra-low latency applications.
The BlueNRG-LP embeds a Cortex®-M0+ microcontroller that can operate up to 64 MHz and also the BlueNRG core coprocessor (DMA based) for Bluetooth Low Energy timing critical operations.
The main Bluetooth Low Energy 5.2 specification supported features are:
