TDA7466$
ActiveSTMicroelectronics

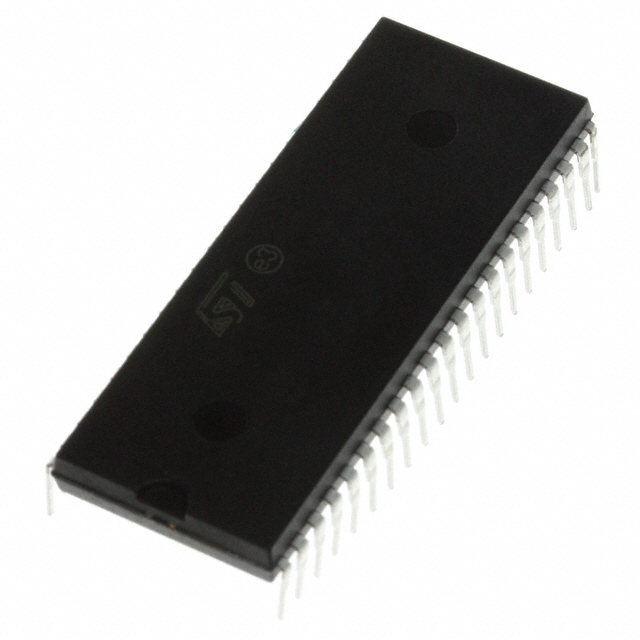

IC AUDIO TONE PROCESSOR 42SDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA7466$
ActiveSTMicroelectronics
IC AUDIO TONE PROCESSOR 42SDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TDA7466$ | TDA7466 Series |
|---|---|---|
| Applications | Signal Mixing | Signal Mixing |
| Function | Audio Tone Processor | Audio Tone Processor |
| Interface | I2C | I2C |
| Mounting Type | Through Hole | Through Hole |
| Number of Channels [custom] | 2 | 2 |
| Operating Temperature [Max] | 85 C | 85 C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Package / Case | 0.6 in | 0.6 in |
| Package / Case | 42-SDIP | 42-SDIP |
| Package / Case | 15.24 mm | 15.24 mm |
| Specifications | Audio Matrix | Audio Matrix |
| Supplier Device Package | 42-SDIP | 42-SDIP |
| Voltage - Supply [Max] | 10.2 V | 10.2 V |
| Voltage - Supply [Min] | 7 V | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TDA7466 Series
IC AUDIO TONE PROCESSOR 42SDIP
| Part | Applications | Supplier Device Package | Number of Channels [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Specifications | Package / Case | Package / Case | Package / Case | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Function | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7466 | Signal Mixing | 42-SDIP | 2 | -10 °C | 85 C | Audio Matrix | 0.6 in | 42-SDIP | 15.24 mm | I2C | 10.2 V | 7 V | Audio Tone Processor | Through Hole |
STMicroelectronics TDA7466$ | Signal Mixing | 42-SDIP | 2 | -10 °C | 85 C | Audio Matrix | 0.6 in | 42-SDIP | 15.24 mm | I2C | 10.2 V | 7 V | Audio Tone Processor | Through Hole |
Description
General part information
TDA7466 Series
Audio Audio Tone Processor 2 Channel 42-SDIP
