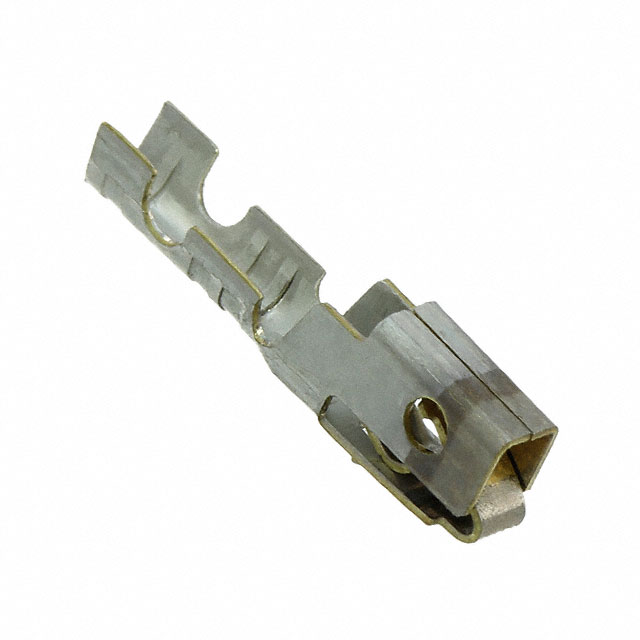

0008550129

Active

Molex

CONN 22-30AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Molex

CONN 22-30AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN 22-26AWG CRIMP GOLD

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Termination	Contact Finish
Molex 0008550137	22 AWG	26 AWG	0.76 Ám	30 Áin	Non-Gendered	Crimp	Gold
Molex 0008550130	22 AWG	30 AWG	0.76 Ám	30 Áin	Non-Gendered	Crimp	Gold
Molex 0008550129	22 AWG	30 AWG	0.38 µm	15 µin	Non-Gendered	Crimp	Gold
Molex 0008550138	17.5 AWG	20 AWG	0.38 µm	15 µin	Non-Gendered	Crimp	Gold
Molex 0008550131	22 AWG	30 AWG	0.76 Ám	30 Áin	Non-Gendered	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Gendered Contact Gold 22-30 AWG Crimp
