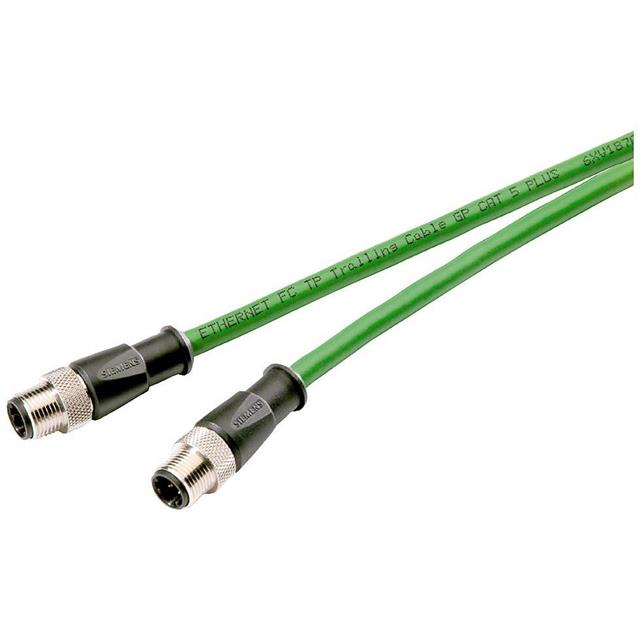

6XV18708AN20
ActiveSiemens
CBL CIRC 4POS MALE TO MALE 65.6'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6XV18708AN20
ActiveSiemens
CBL CIRC 4POS MALE TO MALE 65.6'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6XV18708AN20 | 6XV18708 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | D | D |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle, Right Angle, Receptacle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 | 4 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Orientation | D | D |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Receptacle | Wire Leads, Receptacle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Green | Green |
| Ingress Protection | - | IP67, IP65 |
| Length | - | 1.64 - 49.2 ft |
| Length | - | 1 - 500 mm |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Shielding | Shielded | Shielded, Unshielded |
| Usage | - | Industrial Environments |
6XV18708 Series
CBL CIRC 4POS MALE 1.64'
| Part | 2nd Connector Type | 1st Connector Type | Cable Type | 1st Connector Shell Size - Insert | Length [x] | Length [x] | Color | 1st Connector Mounting Type | Shielding | 1st Connector Number of Positions Loaded | 1st Connector Gender | Cable Material | Assembly Configuration | 1st Connector Number of Positions | 2nd Connector Mounting Type | 2nd Connector Orientation | Usage | 2nd Connector Number of Positions Loaded | Ingress Protection | 1st Connector Orientation | 2nd Connector Number of Positions | 2nd Connector Shell Size - Insert | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens 6XV18708GE50 | Wire Leads | Receptacle, Right Angle | Round | M12 | 1.64 ft | 500 mm | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | ||||||||||
Siemens 6XV18708AE30 | Receptacle | Receptacle | Round | M12 | Green | Free Hanging (In-Line) | Unshielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | Free Hanging (In-Line) | D | Industrial Environments | All | IP65, IP67 | D | 4 | M12 | ||||
Siemens 6XV18708GE30 | Wire Leads | Receptacle, Right Angle | Round | M12 | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | ||||||||||||
Siemens 6XV18708AH15 | Receptacle | Receptacle | Round | M12 | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | Free Hanging (In-Line) | D | All | D | 4 | M12 | 4.92 ' | 1.5 m | ||||
Siemens 6XV18708GH10 | Wire Leads | Receptacle, Right Angle | Round | M12 | 3.28 ft | 1 m | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | ||||||||||
Siemens 6XV18708GH20 | Wire Leads | Receptacle, Right Angle | Round | M12 | 6.56 ft | 2 m | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | ||||||||||
Siemens 6XV18708AN20 | Receptacle | Receptacle | Round | M12 | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | Free Hanging (In-Line) | D | All | D | 4 | M12 | ||||||
Siemens 6XV18708AH20 | Receptacle | Receptacle | Round | M12 | 6.56 ft | 2 m | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | Free Hanging (In-Line) | D | All | D | 4 | M12 | ||||
Siemens 6XV18708AE50 | Receptacle | Receptacle | Round | M12 | 1.64 ft | 500 mm | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 | Free Hanging (In-Line) | D | All | D | 4 | M12 | ||||
Siemens 6XV18708GH30 | Wire Leads | Receptacle, Right Angle | Round | M12 | 9.84 ft | 3 m | Green | Free Hanging (In-Line) | Shielded | All | Male Pins | Polyvinyl Chloride (PVC) | Standard | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 167.41 | |
Description
General part information
6XV18708 Series
Circular Cable Assembly Shielded 65.6' (20.0m)
