822064-4

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PQFP 100POS TIN-LEAD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PQFP 100POS TIN-LEAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	822064-4	822064 Series

Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm	5.08 µm
Contact Finish Thickness - Mating	200 µin	200 µin
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Features	Closed Frame	Closed Frame
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	100	100
Pitch - Mating	0.025 in	0.025 in
Pitch - Mating	0.64 mm	0.64 mm
Pitch - Post	0.64 mm	0.64 mm
Pitch - Post	0.025 in	0.025 in
Termination	Solder	Solder
Termination Post Length	0.135 in	0.135 in
Termination Post Length	3.43 mm	3.43 mm
Type	QFP	QFP

CONN SOCKET PQFP 100POS TIN-LEAD

Part	Housing Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Termination Post Length	Termination Post Length	Mounting Type	Number of Positions or Pins (Grid)	Contact Finish - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Contact Material - Mating	Pitch - Post	Pitch - Post	Contact Material - Post	Termination	Contact Finish - Post
TE Connectivity AMP Connectors 2-822064-4	Liquid Crystal Polymer (LCP)	0.025 in	0.64 mm	200 µin	5.08 µm	UL94 V-0	0.135 in	3.43 mm	Through Hole	100	Tin-Lead	Closed Frame	5.08 µm	200 µin	QFP	Phosphor Bronze	0.64 mm	0.025 in	Phosphor Bronze	Solder	Tin-Lead
TE Connectivity AMP Connectors 822064-4	Liquid Crystal Polymer (LCP)	0.025 in	0.64 mm	200 µin	5.08 µm	UL94 V-0	0.135 in	3.43 mm	Through Hole	100	Tin-Lead	Closed Frame	5.08 µm	200 µin	QFP	Phosphor Bronze	0.64 mm	0.025 in	Phosphor Bronze	Solder	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

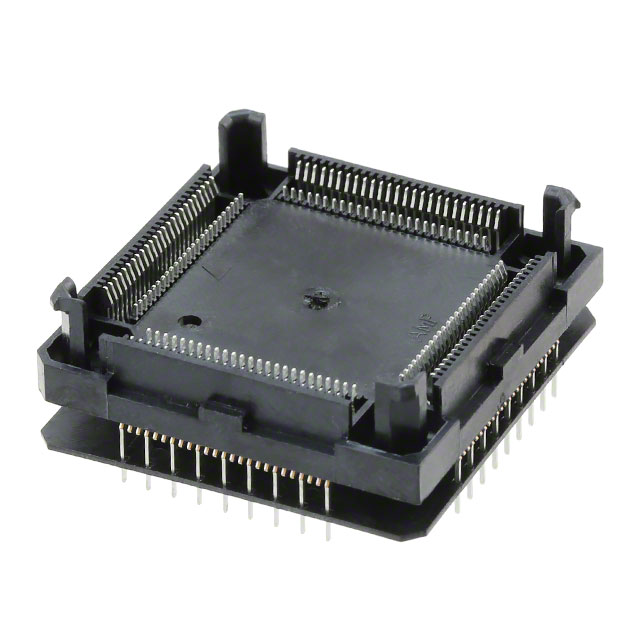

100 (4 x 25) Pos QFP Socket Tin-Lead Through Hole
