EM-SGL-M16-MET-E

Active

TE Connectivity Raychem Cable Protection

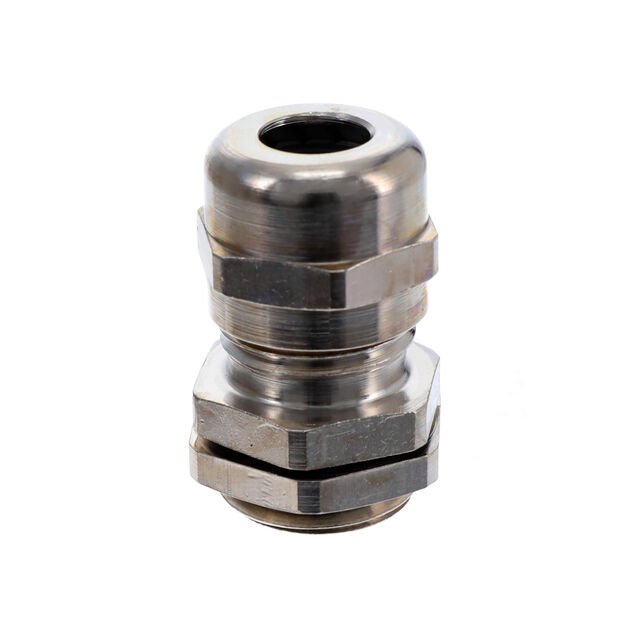

CABLE GLAND 4-8MM M16 BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 4-8MM M16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-M16-MET-E

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	7 mm
Thread Length	0.276 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Thread Length	Thread Length	Ingress Protection	Thread Size
TE Connectivity Raychem Cable Protection EM-SGL-M16-MET-H	Locknut Seal	100 °C	-20 C	Silver	Brass Nickel Plated	0.394 "	10 mm	5 mm	0.197 in	Cable Gland	7 mm	0.276 in	IP68 - Dust Tight Waterproof	M16x1.5
TE Connectivity Raychem Cable Protection EM-SGL-M16-MET-E	Locknut Seal	100 °C	-20 C	Silver	Brass Nickel Plated	0.315 in	8 mm	4 mm	0.157 in	Cable Gland	7 mm	0.276 in	IP68 - Dust Tight Waterproof	M16x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
