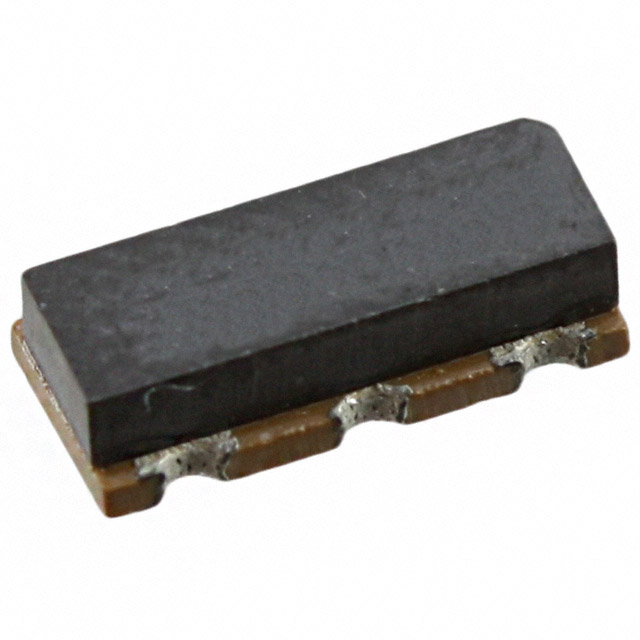

AWSCR-3.58MGD-T4
ObsoleteAbracon LLC
CERAMIC RES 3.5800MHZ 22PF SMD
AWSCR-3.58MGD-T4
ObsoleteAbracon LLC
CERAMIC RES 3.5800MHZ 22PF SMD
Description
General part information
AWSCR-3.58MGD-T4
3.58 MHz Ceramic Resonator Built in Capacitor 22 pF ±0.5% 30 Ohms -25°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AWSCR-3.58MGD-T4 |
|---|---|
| Capacitance | 22 pF |
| Features | Built in Capacitor |
| Frequency | 3.58 MHz |
| Frequency Stability | 0.5 % |
| Frequency Tolerance | 0.3 % |
| Height | 0.083 in |
| Impedance | 30 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension Length | 0.291 in |
| Size / Dimension Width | 0.134 in |
| Type | Ceramic |
