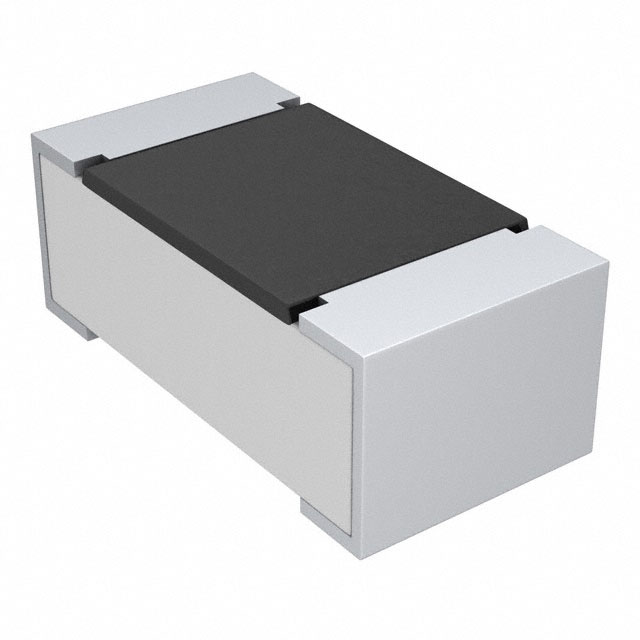

CRCW01001M00JREL

Active

Vishay Dale

RES 1M OHM 5% 1/32W 01005

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW01001M00JREL

Active

Vishay Dale

RES 1M OHM 5% 1/32W 01005

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW01001M00JREL	CRCW0100 Series

Composition	Thick Film	Thick Film
Height - Seated (Max) [Max]	0.006 in	0.006 in
Height - Seated (Max) [Max]	0.15 mm	0.15 mm
Number of Terminations	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	01005	01005
Package / Case	0402 Metric	0402 Metric
Power (Watts)	0.03125 W	0.03125 W
Power (Watts)	30 mW	30 mW
Resistance	1 MOhms	0 - 200000 Ohms
Size / Dimension [x]	0.016 in	0.016 in
Size / Dimension [x]	0.4 mm	0.4 mm
Size / Dimension [y]	0.008 in	0.008 in
Size / Dimension [y]	0.2 mm	0.2 mm
Supplier Device Package	1005	1005
Temperature Coefficient	250 ppm/°C	250 ppm/°C
Temperature Coefficient	-	600 ppm/°C
Temperature Coefficient	-	-200 ppm/°C
Tolerance	5 %	1 - 5 %
Tolerance	-	Jumper

CRCW0100 Series

RES 22 OHM 1% 1/32W 01005

Part	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Tolerance	Temperature Coefficient	Package / Case	Package / Case	Number of Terminations	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Temperature Coefficient [Max]	Temperature Coefficient [Min]
Vishay Dale CRCW010022R0FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	22 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW01000000Z0EL			0.016 in	0.008 in	0.2 mm	0.4 mm	1005			01005	0402 Metric	2	0 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C	Jumper
Vishay Dale CRCW010075R0FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	75 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW0100200RFREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	200 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW01001R00JYEL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	5 %		01005	0402 Metric	2	1 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C		600 ppm/°C	-200 ppm/°C
Vishay Dale CRCW01004K70FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	4.7 kOhms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW01004K30FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	4.3 kOhms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW010047K0FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	47 kOhms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW010047R0FREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	1 %	250 ppm/°C	01005	0402 Metric	2	47 Ohms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C
Vishay Dale CRCW01001M00JREL	0.03125 W	30 mW	0.016 in	0.008 in	0.2 mm	0.4 mm	1005	5 %	250 ppm/°C	01005	0402 Metric	2	1 MOhms	0.006 in	0.15 mm	Thick Film	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.14
	Digi-Reel®	1	$ 0.14
	Tape & Reel (TR)	20000	$ 0.01

Description

General part information

CRCW0100 Series

1 MOhms ±5% 0.03W, 1/32W Chip Resistor 01005 (0402 Metric) Thick Film

Documents

Technical documentation and resources
