B2601NG--20C000923U1930
ActiveHarvatek Corporation

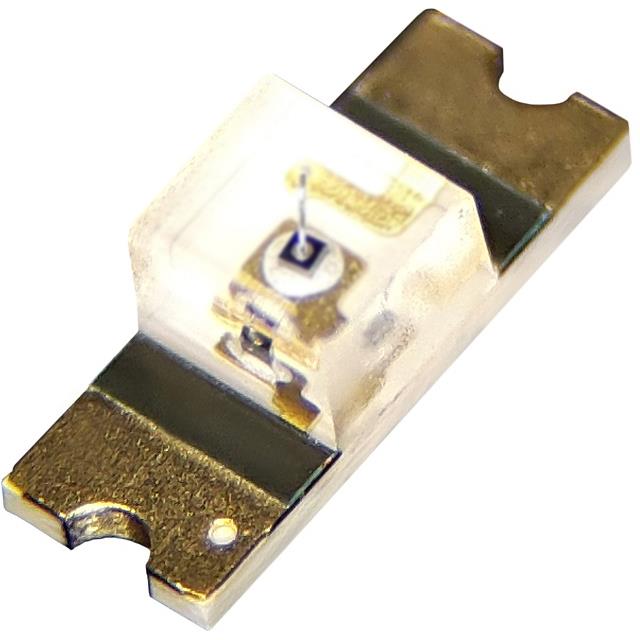

LED GREEN CLEAR 1205 SMD
B2601NG--20C000923U1930
ActiveHarvatek Corporation
LED GREEN CLEAR 1205 SMD
Description
General part information
B2601NG--20C000923U1930
Green 525nm LED Indication - Discrete 3.3V 1205 (3212 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B2601NG--20C000923U1930 |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) | 1.2 mm |
| Lens Length | 3.2 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Lens Width | 1.2 mm |
| Millicandela Rating | 285 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1205 (3212 Metric) |
| Package Name | 1205 |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.2 mm |
| Supplier Device Package | 1205 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 520 nm |
