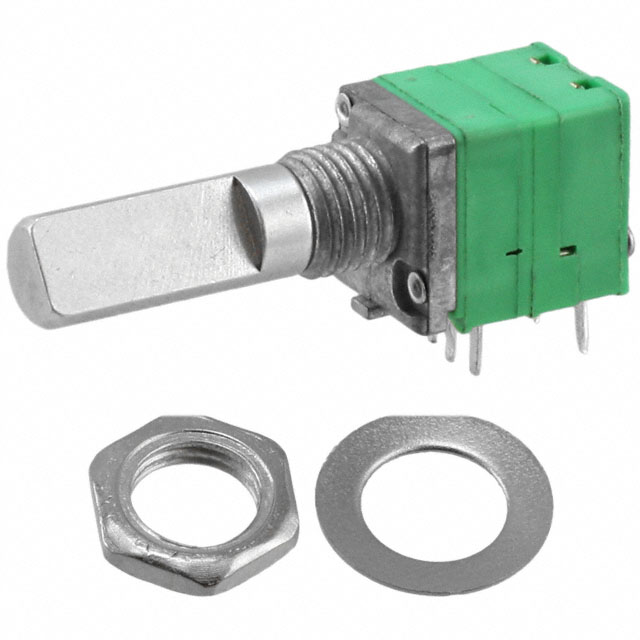

P091S-FC20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

POT 10K OHM 1/20W PLASTIC LINEAR

Part	Resistive Material	Bushing Thread	Bushing Thread	Adjustment Type	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Actuator Length [z]	Actuator Length [z]	Actuator Type	Termination Style	Power (Watts)	Power (Watts)	Resistance (Ohms)	Built in Switch	Taper	Number of Gangs	Rotation	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Turns	Resistance (Ohms)	Actuator Length
TT Electronics/BI P091S-FC20BR10K	Conductive Plastic	0.75	M7	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	20 mm	0.787 in	Flatted	Board Locks, PC Pins	0.05 W	50 mW	10k	Rotary, SPST	Linear	1	300 ░	20 %	0.236 in	6 mm	1
TT Electronics/BI P091S-QC15BR50K	Conductive Plastic	0.75	M7	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm		0.591 in	Knurled and Slotted	Board Locks, PC Pins	0.05 W	50 mW		Rotary, SPST	Linear	1	300 ░	20 %	0.236 in	6 mm	1	50 kOhms	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
