Description
General part information

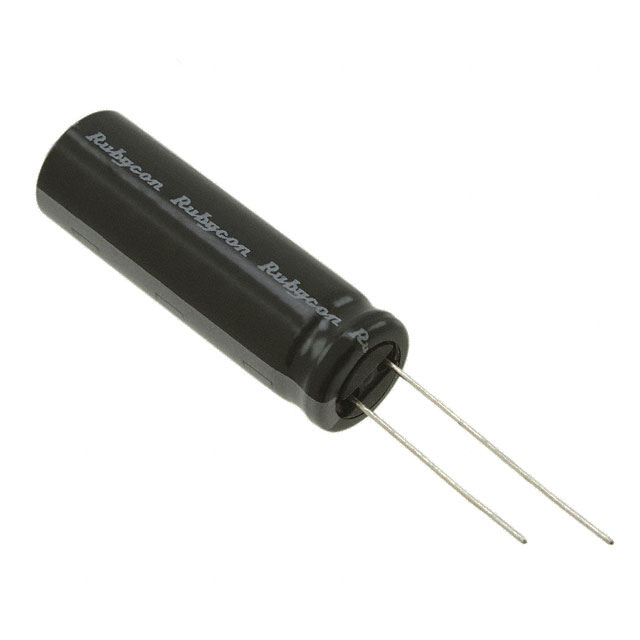

50YXG820MEFC12.5X35
820 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 50YXG820MEFC12.5X35 |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| Height - Seated (Max) | 1.457 in |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 6000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.506 A, 2.51 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
